PowerUrus 12V-200AH LiFePO4 Deep Cycle Rechargeable Battery
Pre-sale: Estimated arrival time: 3 months
10-Years Warranty
20 Years of Design Life
16 Units Flexible Capacity Expansion
Easy Installation: Wall Mounted
Intelligent BMS: Multiple Safe Protections
High Compatibility: Compatible with Many Brands of Inverters
PowerUrus 12V 200AH LiFePO4 Deep Cycle Rechargeable Battery
| Model | S12200A |
| Nominal Voltage | 12V |
| Capacity | 200 Ah, 2560Wh |
| Life Cycles | >3500 @ 80% DOD |
| BMS Board | Yes (Internal) |
| BMS Rating | 200A BMS |
| Mechanical Performance | |
| Cell Type | Grade A LiFePO4 Cells (Prismatic Cell) |
| Number of Cells | 8 |
| Terminal | M8*12mm (L) |
| Weight | 58.42 lb (26.5kg) |

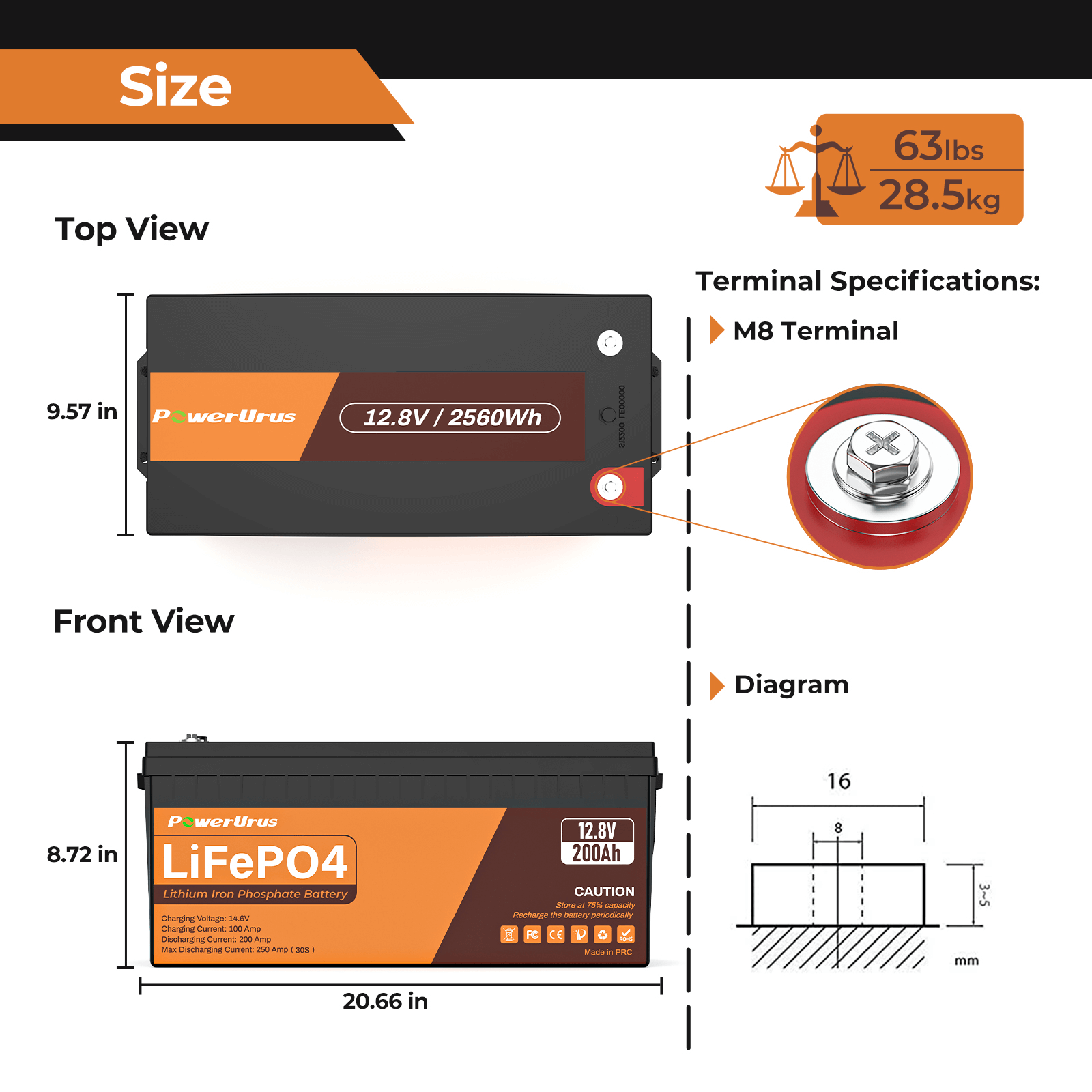

| Dimensions | 20.66in x 9.57in x 8.72in (524.8mm x243mm x 221.5 mm) |
| Waterproof Rating | IP65 |
| Charge Performance | |
| Max Charge Current | 200A |
| Recommended Charge Voltage | 14.2V-14.6V |
| *Please use the LiFeP04 battery charger, the SLA charger may work but will reduce the performance and lifespan of the battery. | |
| Maximum Batteries in Serious | 4 (get higher voltage to 24V, 36V, 48V) |
| Maximum Configuration | 4S1P/1S4P/2S2P |
| Discharge Performance | |
| Max Discharge Current | 250A |
| Recommended Discharge Voltage | 10.8V-12.4V |
| Max Depth of Discharge (DoD) | 100% |
| Temperature Performance | |
| Operating Temperature (Charge) | 0℃~55℃ (32℉~131℉) |
| Operating Temperature (Discharge) | -20℃~55℃ (-4℉~140℉) |
| Operating Temperature (Storage) | -20℃~55℃ (-4℉~140℉) |
PowerUrus Battery APP Download Link:
Android：
https://play.google.com/store/apps/details?id=uni.UNI56D415D
iPhone:
https://apps.apple.com/us/app/roypow-fish/id6446618041
Excellent Bluetooth Function
Compared with the traditional battery monitor, the PowerUrus battery has added Bluetooth function and can obtain various data from the lithium iron phosphate battery. Customers can connect to the battery through the RoyPow Fish APP, and read the battery voltage, power, and other important information at any time.

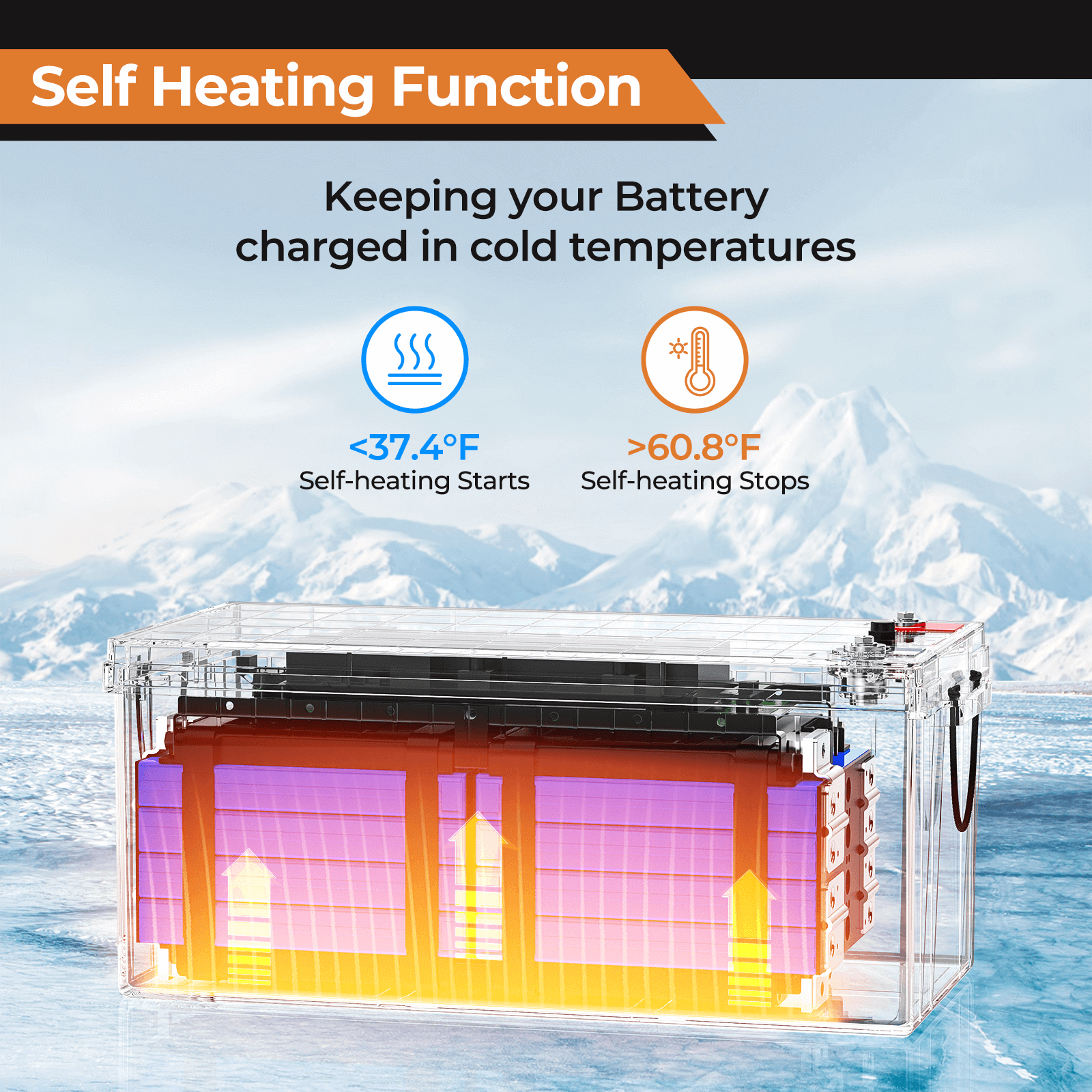

Intelligent Self-Heating Function
PowerUrus LifePO4 Self-Heating Battery meets the upgraded self-heating function based on the previous battery. When the charging temperature falls below 37.4°F/3°C, the self-heating function will be automatically activated. The heating will stop when the temperature reaches 60.8°F/16°C, and then the battery will be normally charged. No fear of winter coming!
Battery Charge & Discharge Protection
PowerUrus Batteries Built-in smart BMS prevents charging over 131 °F (55 °C), less than 32 °F (0 °C) and also prevents discharging over 140 °F (60 °C), less than -4 °F (-20 °C).
5-Year Warranty & Timely Service
PowerUrus provides a 5-year warranty for our batteries. We're struggling to provide the safest batteries and the most professional service to every customer. If you have any questions, please feel free to contact us.
Widely Uses
Capacity Expansion For Every Need

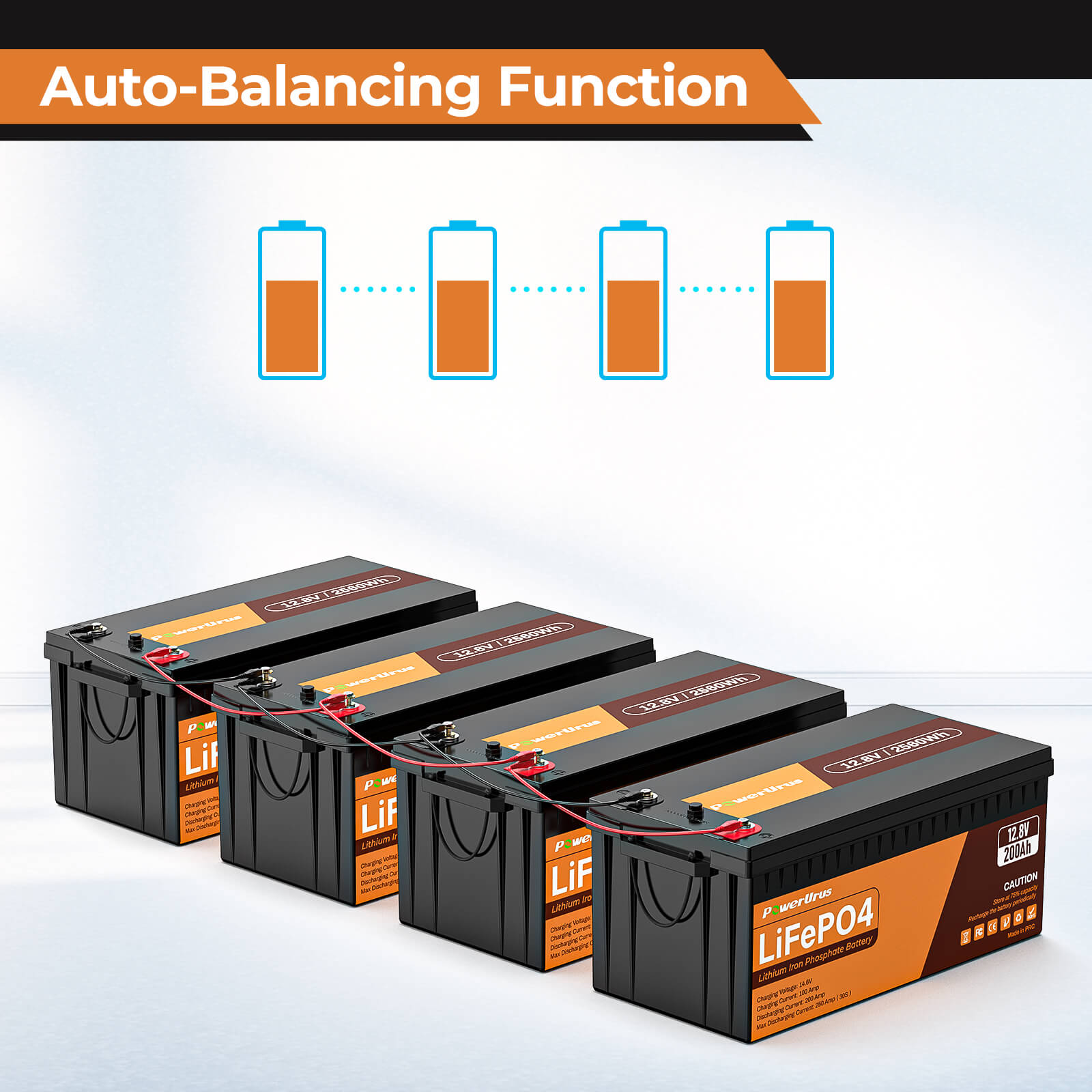

PowerUrus LiFePO4 battery with auto-balancing function can be connected in parallel and in series for larger capacity and voltage. Max 4 batteries connection in series or 4 batteries in parallels. so you can have more flexibility in getting a DIY battery system to cover all your needs.
Built-in BMS & Big-brand New A+ Cell
With our proprietary Battery Management System (BMS), the PowerUrus LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. The upgraded auto-balancing technique improves the battery life, backing up that all batteries deliver life cycles 3500+ (70% DoD), minimum 5-year life span.
High-quality Batteries Are Assured For Customers
PowerUru's original factory deep cycle lithium-ion battery has higher energy density, more stable performance and greater power. LiFepo4 battery will not burn when overcharged, over-discharged, overcurrent or short circuit, and can withstand high temperatures without decomposition. Our LiFepo4 batteries a green battery, it does not contain any heavy metals or rare metals and is more environmentally friendly.
U.S. Based Warehouses & Fast Delivery
The orders can be shipped within 24 hours after the payment is successful. We provide fast delivery for the battery will be shipped from our local warehouses in California and Georgia and the customers are expected to receive the battery within 3-5 working days. The actual logistics time is determined by the inventory of the nearest warehouse, if you have any questions, please feel free to contact us.
Attention Please:
This battery is NOT suitable for use as a starter battery for cars.
| System Specification | |
| Model | RBmax5.1L-F |
| Electric Data |
|
| Nominal Energy (kWh) | 5.12 |
| Usable Energy (kWh) | 4.79 |
| Cell Type | LFP (LiFePO4) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage Range (V) | 44.8 ~ 56.8 |
| Max. Continuous Charge Current (A) | 100 |
| Max. Continuous Discharge Current (A) | 100 |
| General Data | |
| Weight (Kg / lbs.) | 48 Kg / 105.8 lbs. |
| Dimensions (W × D × H) (mm / inch) | 500 x 167 x 490 mm / 19.69 x 6.57 x 19.29 inch |
| Operating Temperature (°C) | 0 ~ 55℃ (32 ~ 131℉) (Charge), -20 ~ 55℃ (4 ~ 131℉) (Discharge） |
| Storage Temperature (°C) Delivery SOC State (20~40%) |
>1 Month: 0 ~ 35℃ (32 ~ 95℉); ≤1 Month: -20 ~ 45℃ (-4 ~ 113℉) |
| Relative Humidity | ≤ 95% |
| Max. Altitude (m) | 4000 m / 13,123 ft (＞2,000 m / ＞6,561.68 ft derating） |
| Protection Degree | IP 20 |
| Installation Location | Ground-Mounted; Wall-Mounted |
| Communication | CAN, RS485 |
| Certification | EM,CE,Transportation,UN38.3 |
| Warranty | |
| Warranty (Years) | 5 Years |
| System Specification | |
| PV (DC Input) | |
| Recommended Max. PV Input Power | 6000W |
| Max. Input Voltage (VOC) | 500V |
| MPPT Operating Voltage Range | 85V-450V (@75V Start up) |
| Number of MPPT | 1 |
| Max. Number of Input Strings per MPPT | 1 |
| Max. Input Current per MPPT | 27A |
| Max. Short-circuit Current per MPPT | 35A |
| Grid (AC Input) | |
| Max. Input Power | 11500W |
| Max. Input Current | 50A |
| Rated Grid Voltage | 220 / 230 / 240Vac |
| Rated Grid Frequency | 50 / 60Hz |
| Acceptable Range | 170-280Vac (For UPS); 90-280Vac (For Home Appliances) |
| Battery (Bi-direction) | |
| Battery Type | LiFePO4 / Lead-acid |
| Battery Voltage Range | 40-60Vdc |
| Rated Battery Voltage | 48Vdc |
| Max. Charge / Discharge Current | 120A / 130A |
| BMS Communication Mode | RS485 |
| Efficiency | |
| Peak Efficiency | 0.98 |
| Max. MPPT Efficiency | 0.999 |
| Backup Output (AC Output) | |
| Rated Output Power | 6000W / 6000VA |
| Rated Output Current | 27.3A |
| Rated Output Voltage / Frequency | 220 / 230 / 240Vac 50 / 60Hz |
| Parallel Capacity | Max. 12 Units |
| Surge Power | 12000VA 5s |
| THDv (@ Linear Load) | ＜3% |
| Switch Time | 10ms Typical (For UPS), 20ms Typical (For Home Appliances) |
| Protection | |
| Inner Protection | Output Short-circuit Protection, Output Overvoltage Protection |
| Surge Protection | PV: Type III, AC: Type III |
| IP Rating | IP54 |
| General Specifications | |
| Operating Temperature Range | -10℃~55℃ |
| Relative Humidity Range | 5%~95% |
| Max. Operating Altitude | ＞2000m Derating |
| Standby Self-consumption | ＜10W |
| Installation Type | Wall-mounted |
| Cooling Mode | Fan Cooling |
| Communication | RS232/RS485/Dry Contact/Wi-Fi |
| Display | LCD |
| Mechnical Specifications | |
| Inverter Dimension (L x W x H) | 346.6 x 120 x 444.7 mm |
| Shipping Dimension | 560 x 465 x 240mm |
| Net Weight | 12.4kg |
| Gross Weight | 14.6kg |
| Warranty Period | 3 Years |
