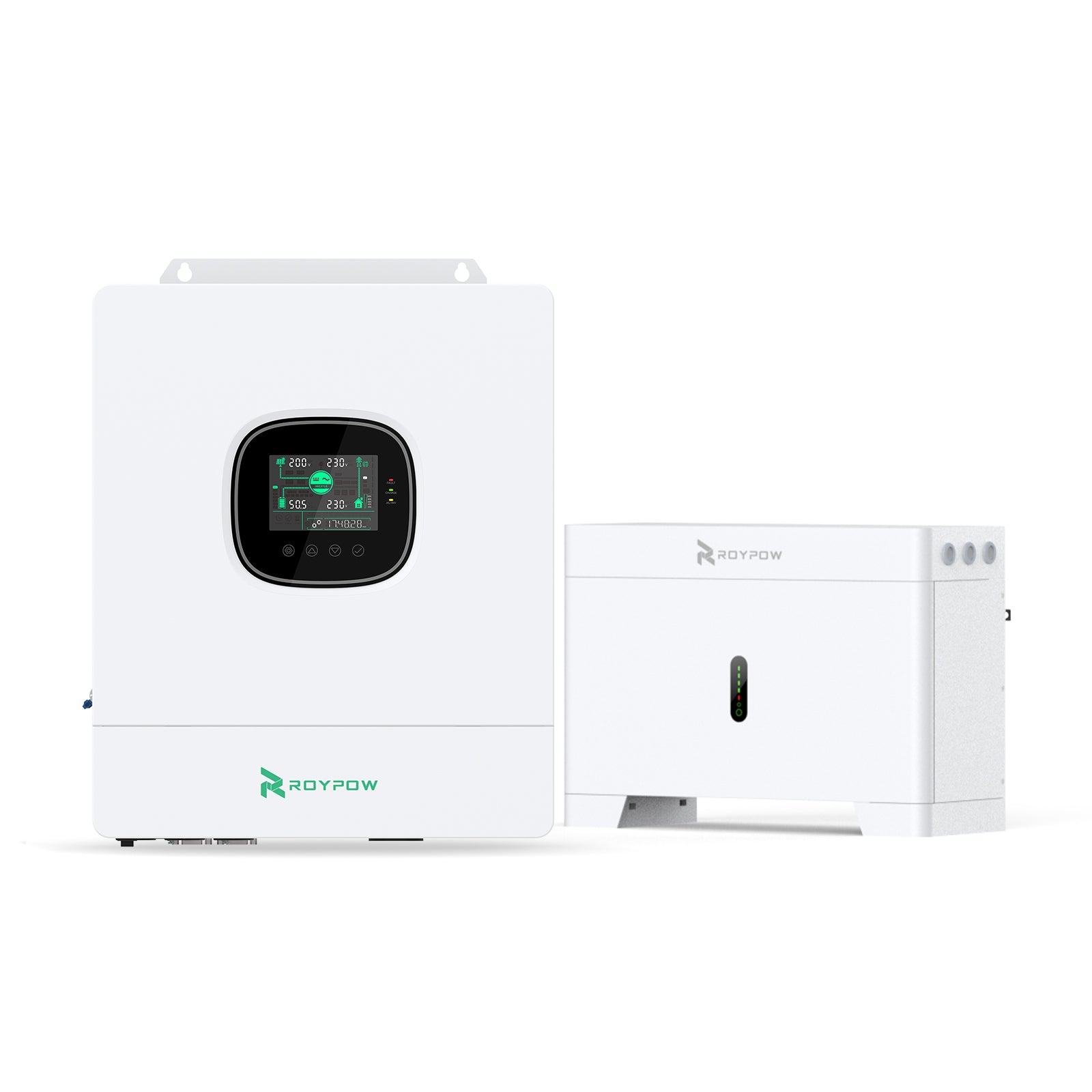

RoyPow Off-Grid Energy Storage System with 5.12Kwh LiFePO4 Battery & 5kw inverter
Get a bulk price for bulk items.
Pre-sale: Estimated arrival time: 2 months.
10-Years Warranty
20 Years of Design Life
16 Units Flexible Capacity Expansion
Easy Installation: Wall Mounted
Intelligent BMS: Multiple Safe Protections
High Compatibility: Compatible with Many Brands of Inverters

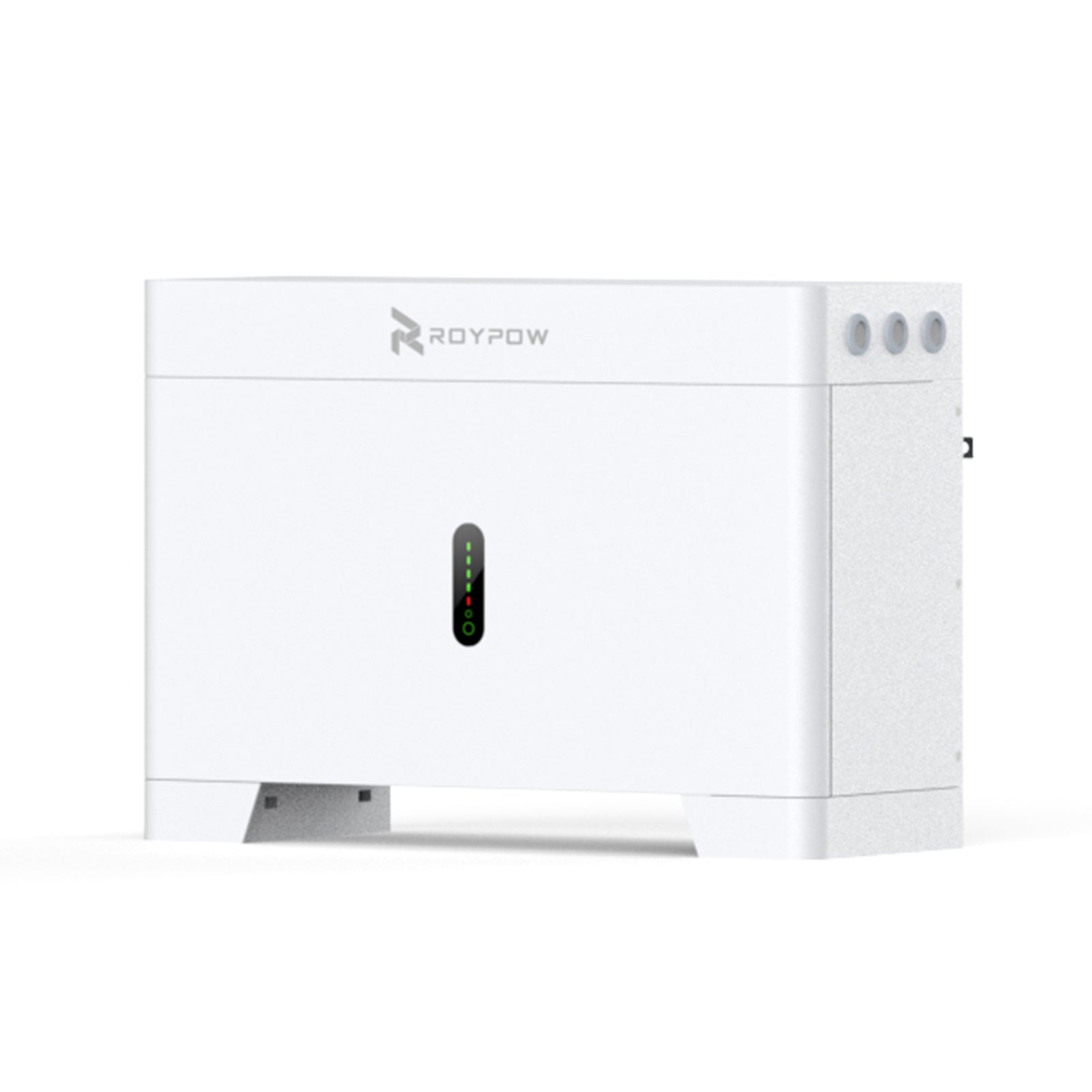

5.12Kwh LiFePO4 Battery
- Our Lithium Iron Phosphate (LiFePO4) Batteries are engineered for optimal off-grid energy storage, offering high-performance, reliability, and long-lasting durability. Each module delivers 5kW of maximum continuous discharge power, providing consistent and dependable energy for your off-grid applications, whether for residential, commercial, or industrial use.
- With the flexibility to expand your system capacity by adding up to 4 units, these batteries can easily grow with your energy needs, ensuring scalable and future-proof energy storage.
- Designed for superior longevity, our batteries boast an impressive cycle life of over 6,000 cycles, guaranteeing they will provide years of uninterrupted service. Plus, with a 10-year warranty, you can have full confidence in the long-term value and performance of your investment.
- Perfect for sustainable energy solutions, our LiFePO4 batteries ensure your off-grid systems run smoothly and efficiently for many years to come.
Flexible Capacity Expansion
- Meet specific residential electricity usage requirements with scalable energy storage. The system starts with a standard capacity of 5.1 kWh and can be expanded up to a maximum capacity of 81.6 kWh, ensuring adaptability to varying household energy demands.
Intelligent BMS Monitoring & Management
- The advanced Battery Management System (BMS) continuously monitors and optimizes battery performance, enhancing efficiency, safety, and longevity. With real-time diagnostics and intelligent control, the system ensures stable operation and maximized energy output.
intelligent management
- With intelligent management features, you can easily monitor system status through the LCD display or mobile app, providing real-time control and convenience at your fingertips.
| Model | RBmax5.1L LiFepo4 battery |
| Nominal Energy (kWh) | 5.12 |
| Usable Energy (kWh) | 4.79 |
| Scalability (kWh) | Max. 16 in parallel, Max. 81kWh |
| Nominal Charge/ Discharge Current (A) | 50/50 |
| Max. Charge/ Discharge Current(A) | 100/100 |
| Cell type | Lithium iron phosphate (LFP) |
| Operating voltage range (V) | 44.8 ~ 56.8 |
| Nominal voltage (V) | 51.2 |
| Weight (Kg / lbs.) | 48.5 Kg/106.9 lbs. |
| Dimensions (W×D×H mm / inch) | 650x240x460 mm 25.6 x 9.5 x 18.1 inch |
| Operating temperature(℉/°C) | Charge: 32 ~ 131℉ (0 ~ 55°C), Discharge: 4 ~ 131℉(-20 ~ 55°C) |
| Storage temperature (℉/°C) | ≤1 month: -4 ~ 113℉ (-20 ~ 45°C), >1 month: 32 ~ 95℉ (0 ~ 35°C) |
| Installation location | Indoor/Outdoor, Floor standing or Wall mounted |
| Communication | CAN, RS485 |
| Relative humidity | 0 ~ 95% |
| Max. altitude (m / ft.) | 4000 m / 13,123 ft (＞2,000 m / ＞6,561.68 ft derating） |
| Ingress rating | IP 65 |
| Certification | IEC 62619, UL 1973, EN 61000-6-1, EN 61000-6-3, FCC Part 15, UN38.3 |

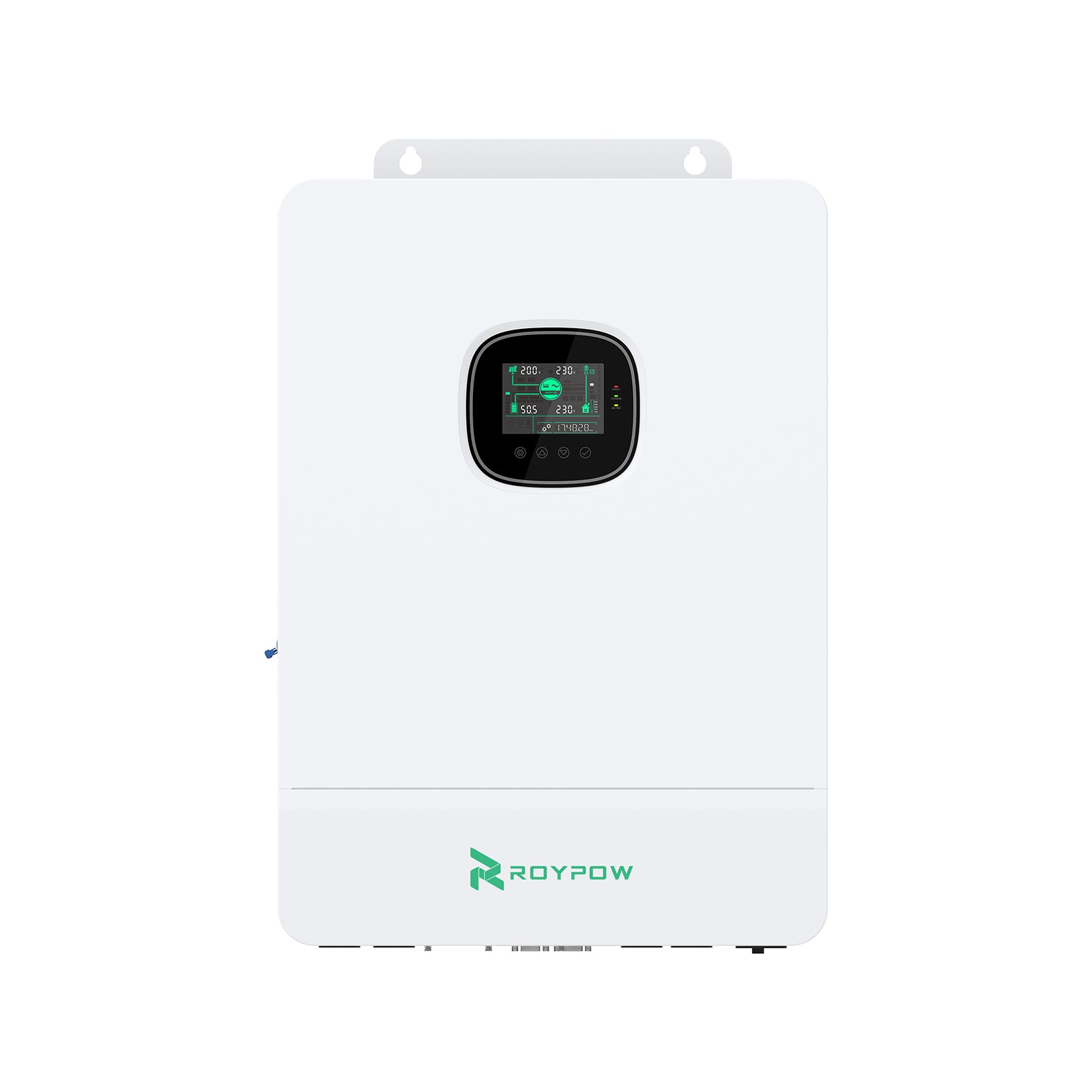

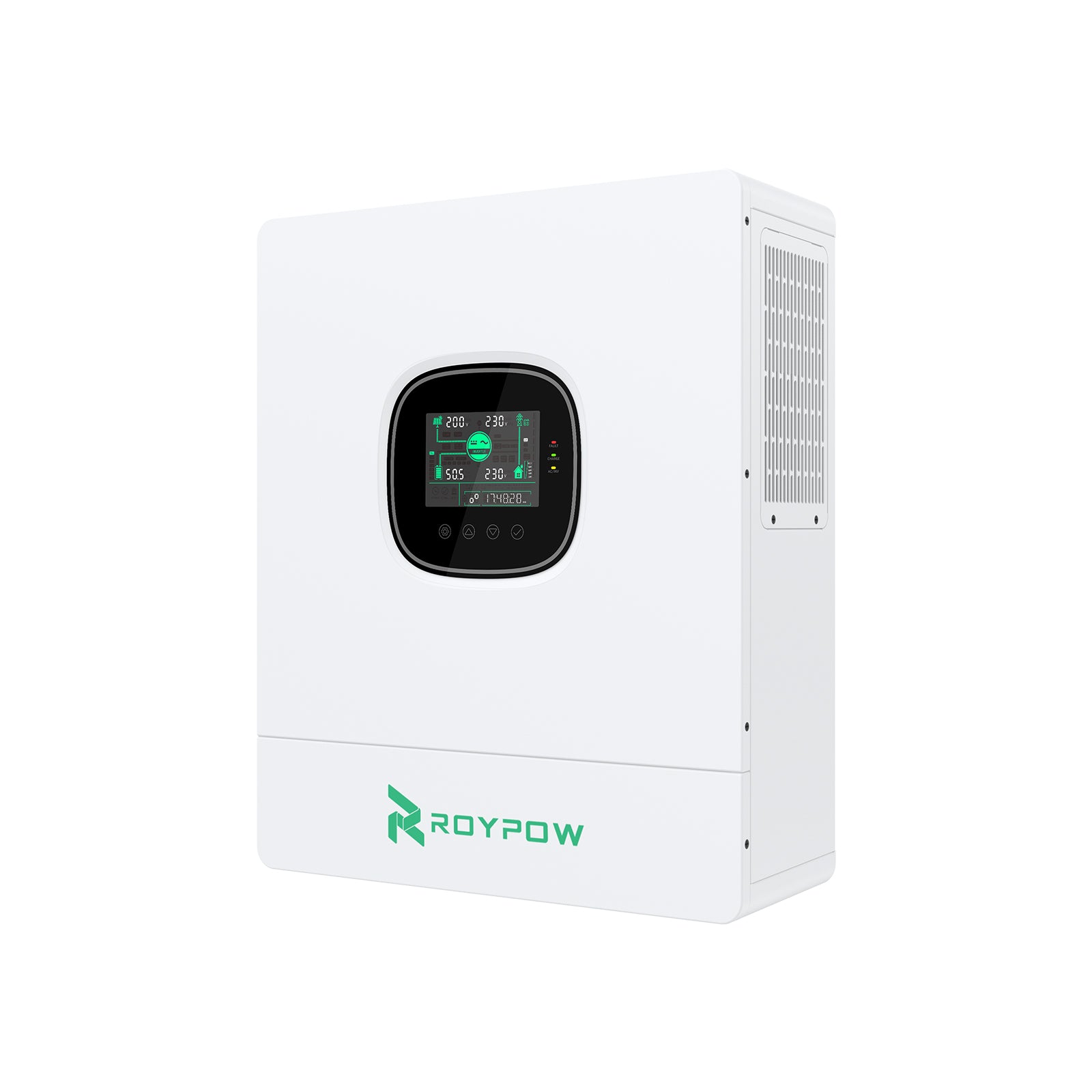

| Model | R5000S-UP-120V Inverter |
| PV Input | |
| Max. PV Input Power | 5500 W |
| Max. DC Voltage | 500 V |
| MPPT Voltage Range | 120 V-450 V |
| Max. Input Current | 22 A |
| Number of MPPT | 1 |
| Battery Input | |
| Battery Type | Lead-acid / LFP |
| Rated Voltage | 48 V |
| Voltage Range | 40V-60 V |
| Max. MPPT Charging Current | 100 A |
| Max. Mains/GeneratorCharging Current | 40 A |
| Max. Hybrid Charging Current | 100 A |
| AC Input | |
| Input Voltage Range | 90−140 VA |
| Frequency Range | 50 Hz / 60 Hz |
| Bypass Overload Current | 63 A |
| AC Output | |
| Rated Output Power | 5000 W |
| Max. Peak Power | 10000 |
| Rated Output Voltage | 120 Vac（L/N/PE Single Phase） |
| Load Capacity of Motors | 4HP |
| Rated AC Frequency | 50 Hz / 60 Hz |
| Waveform | Pure Sine Wave |
| Switch Time | 10 ms |
| Efficiency | |
| MPPT Tracking Efficiency | 99.90% |
| Max. Efficiency (Battery) | 92% |
| General Specifications | |
| Dimension (L x W x H) | 446.9 x 350 x 133 mm (17.59 x 13.78 x 5.24 inch) |
| Weight | 14 kg (30.86 lbs.) |
| Installation | Wall-Mounted |
| Environmental Temperature Range | -10~55℃,>45℃ Derated (14~131℉, >113℉ Derated) |
| Max. Altitude | ＞2,000m / ＞6,561.68 ft Derating |
| Ingress Rating | IP20 |
| Cooling Mode | Forced Air Cooling with Adjustable Air Speed |
| Noise | ＜60dB |
| Display Type | LCD Display |
| Communication | Wi-Fi / RS485 |
