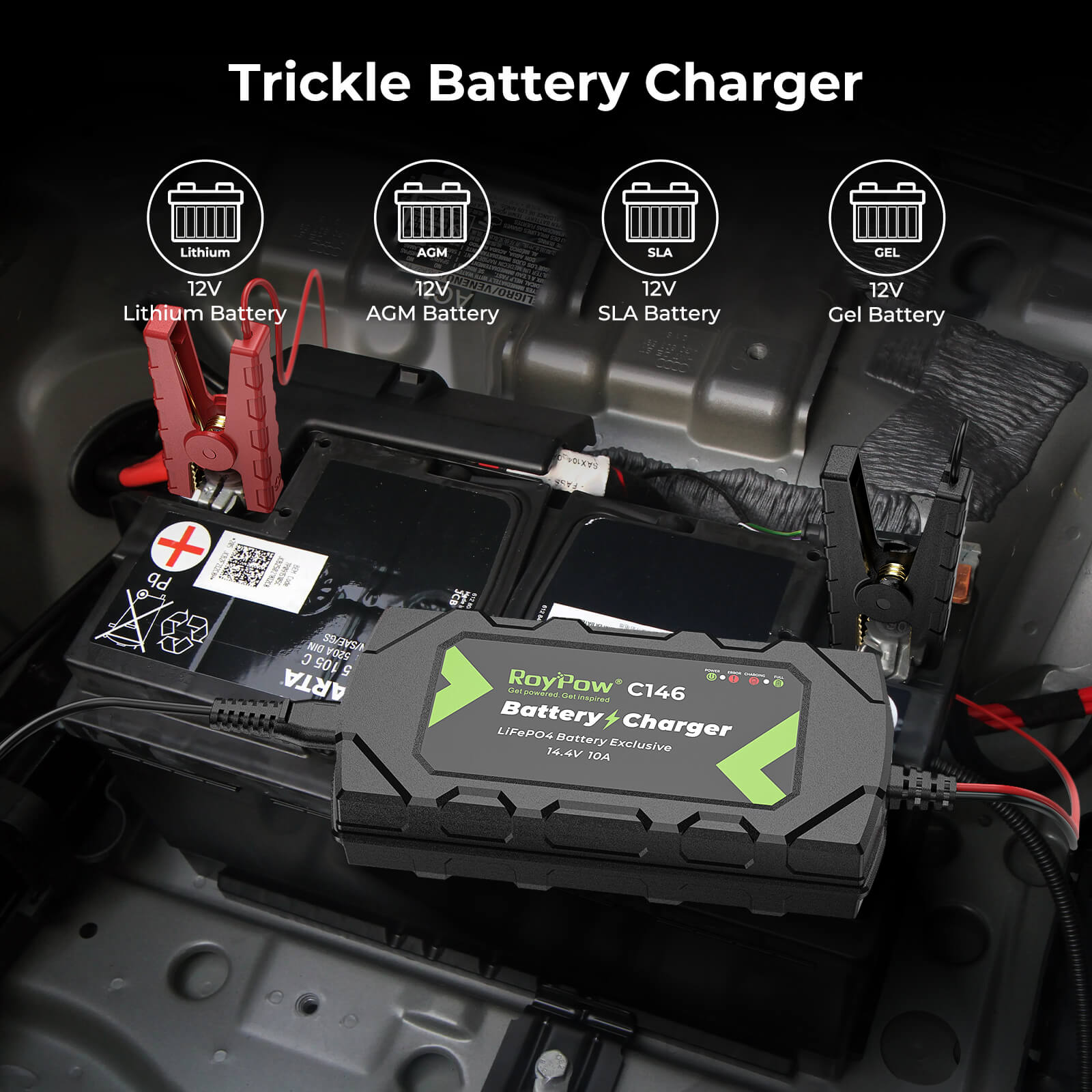

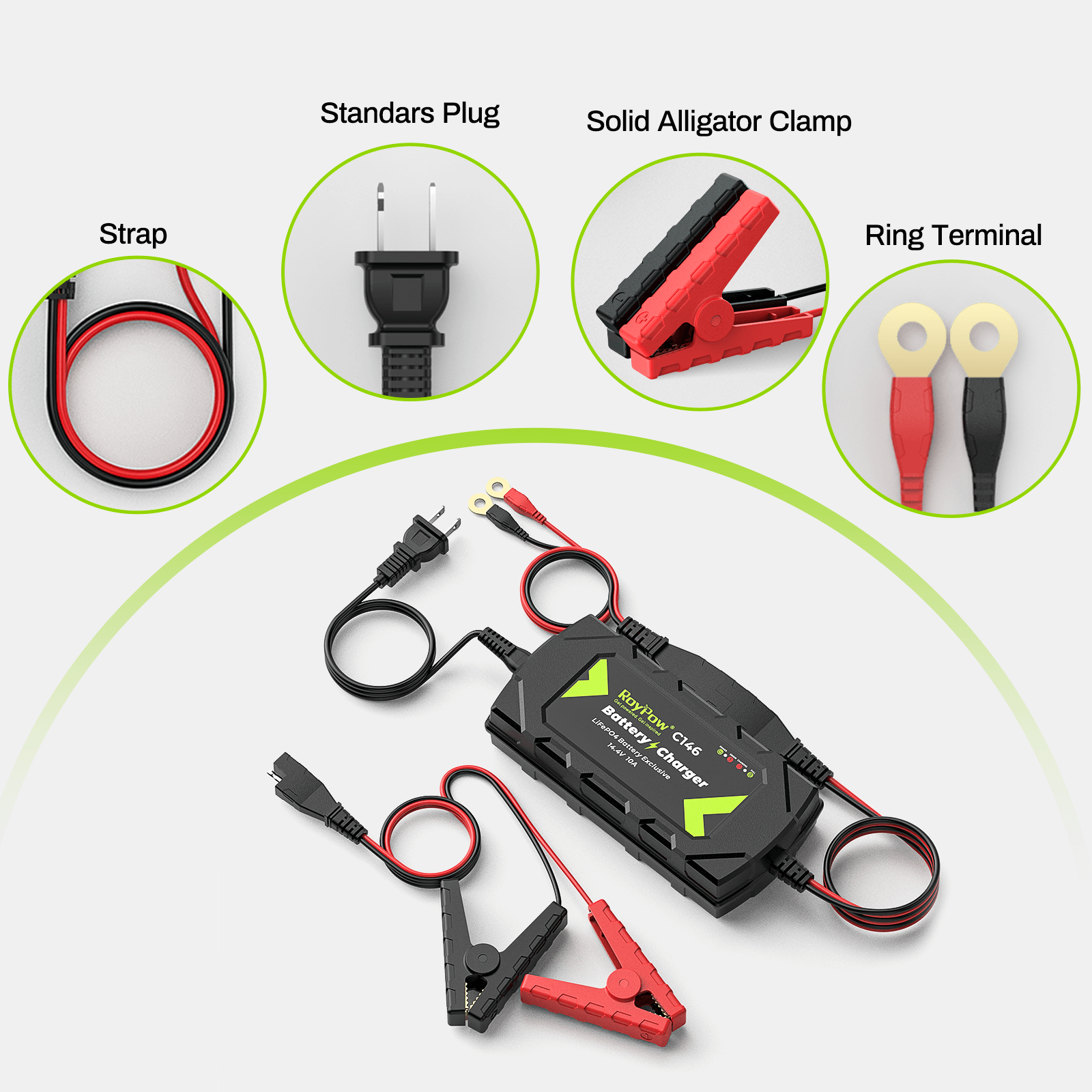

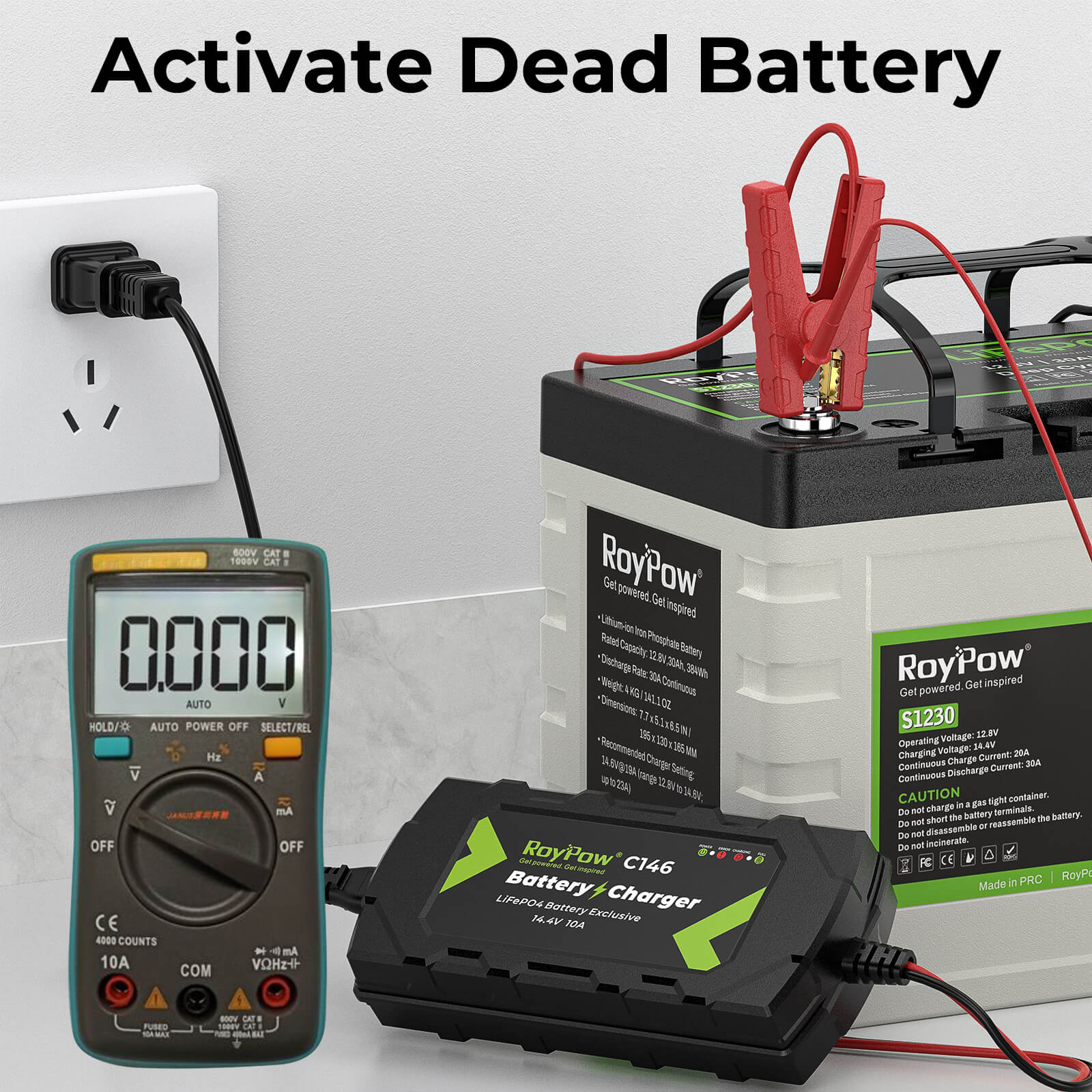

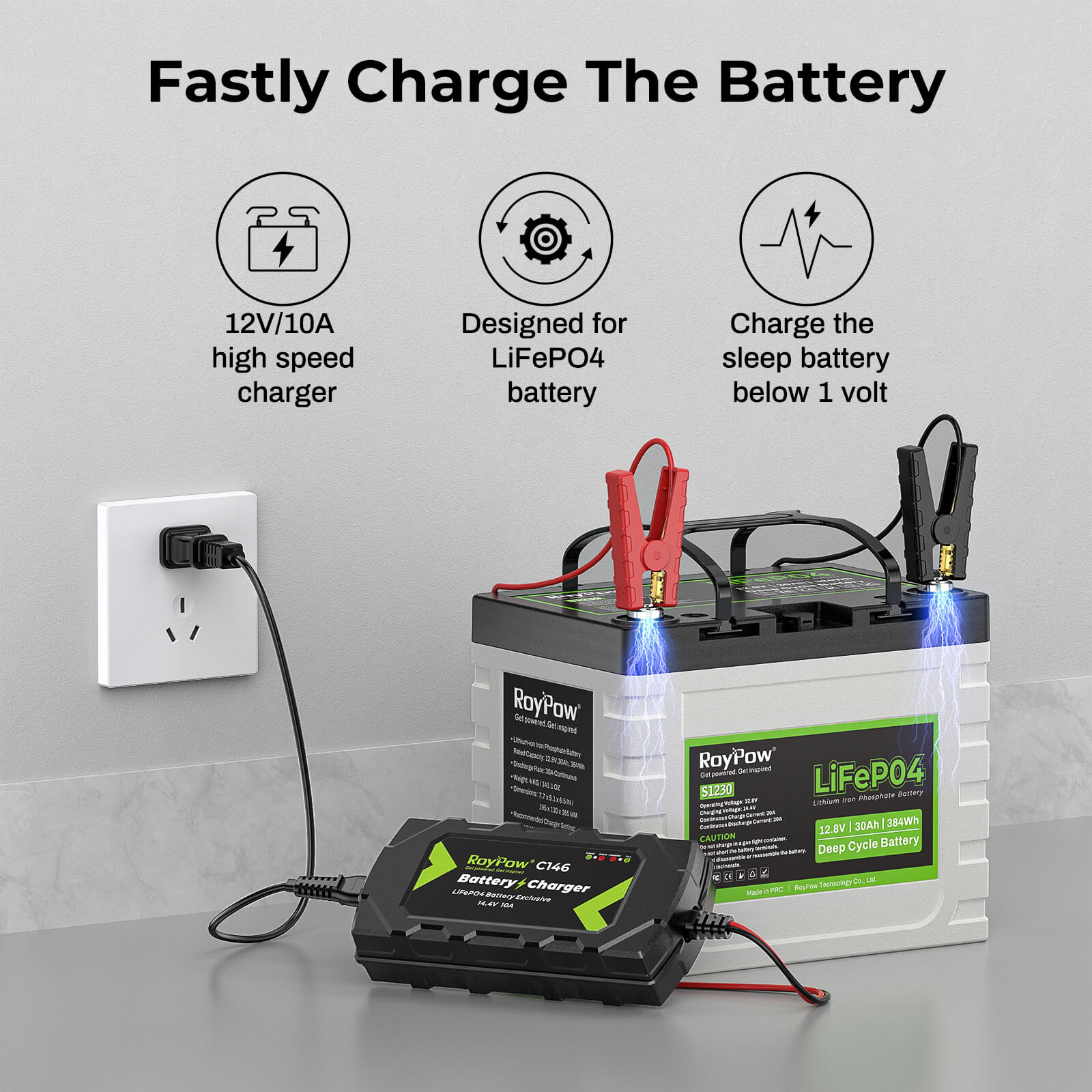

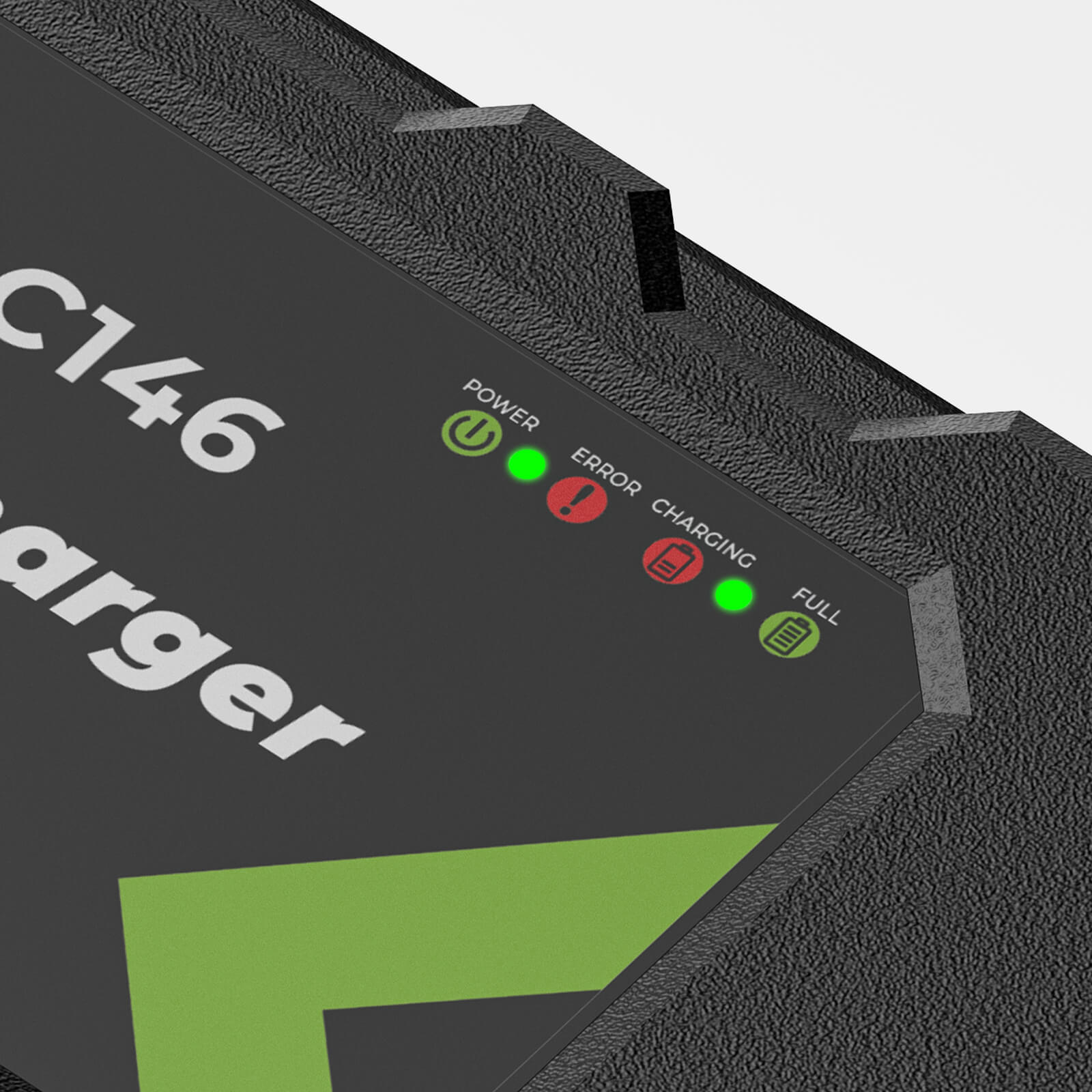

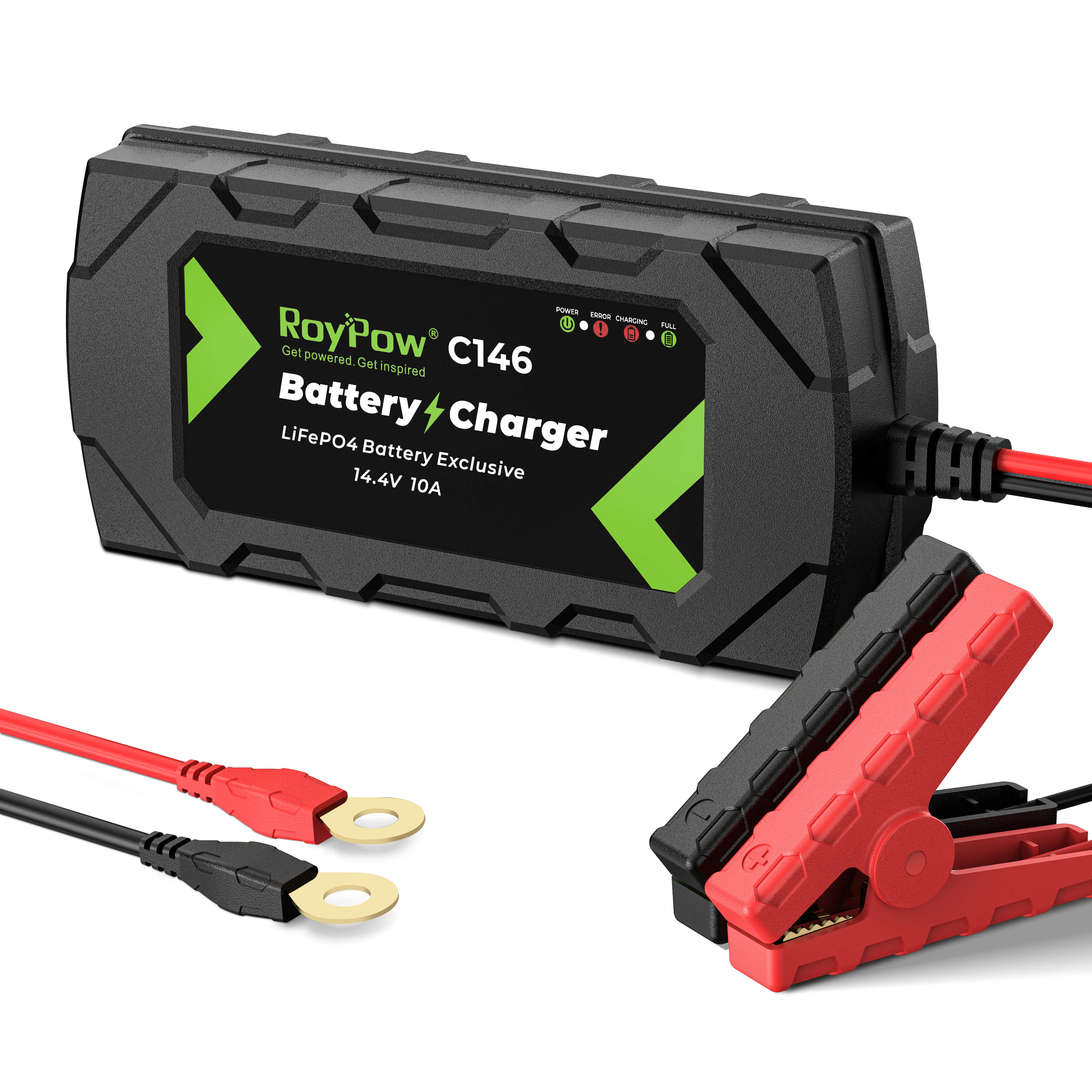

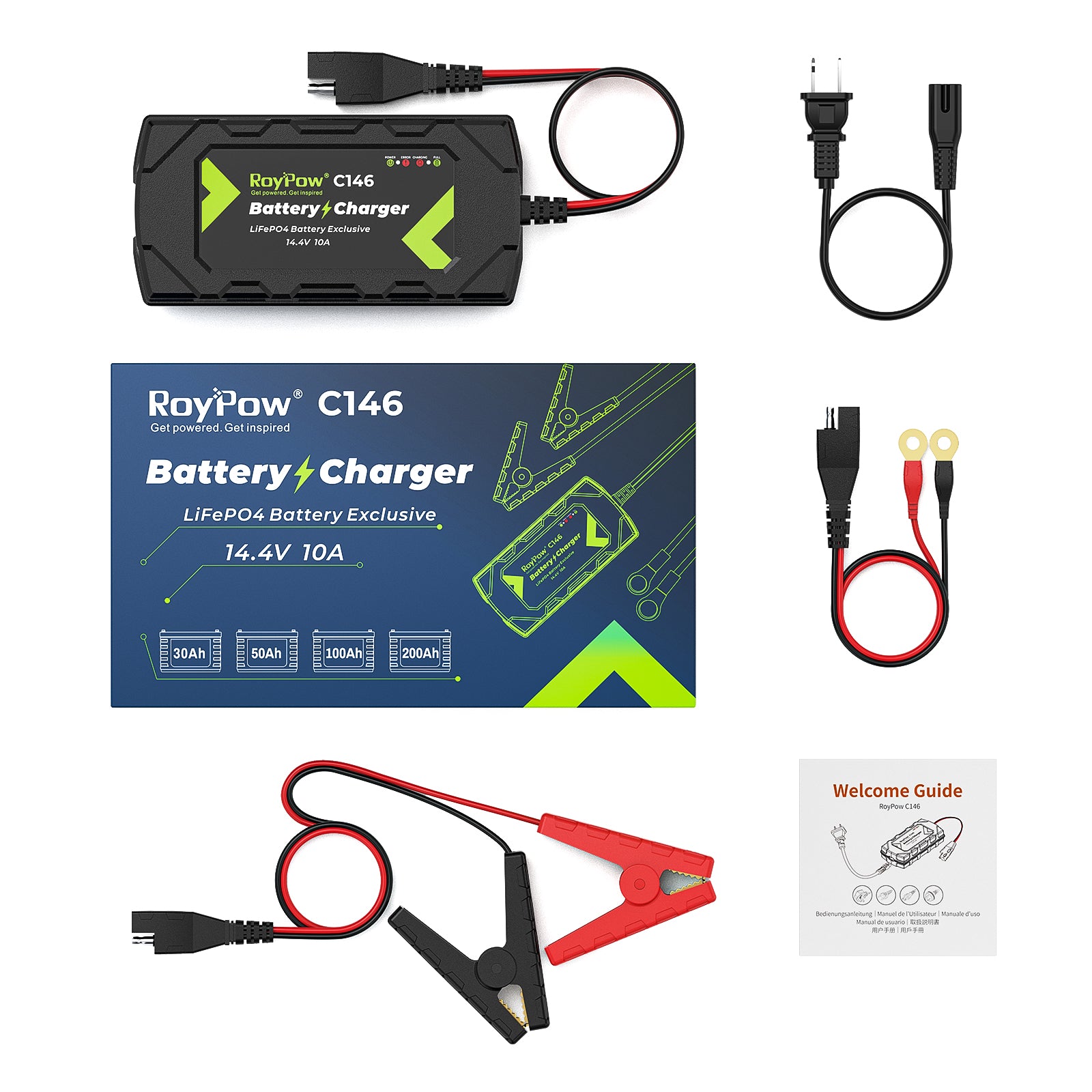

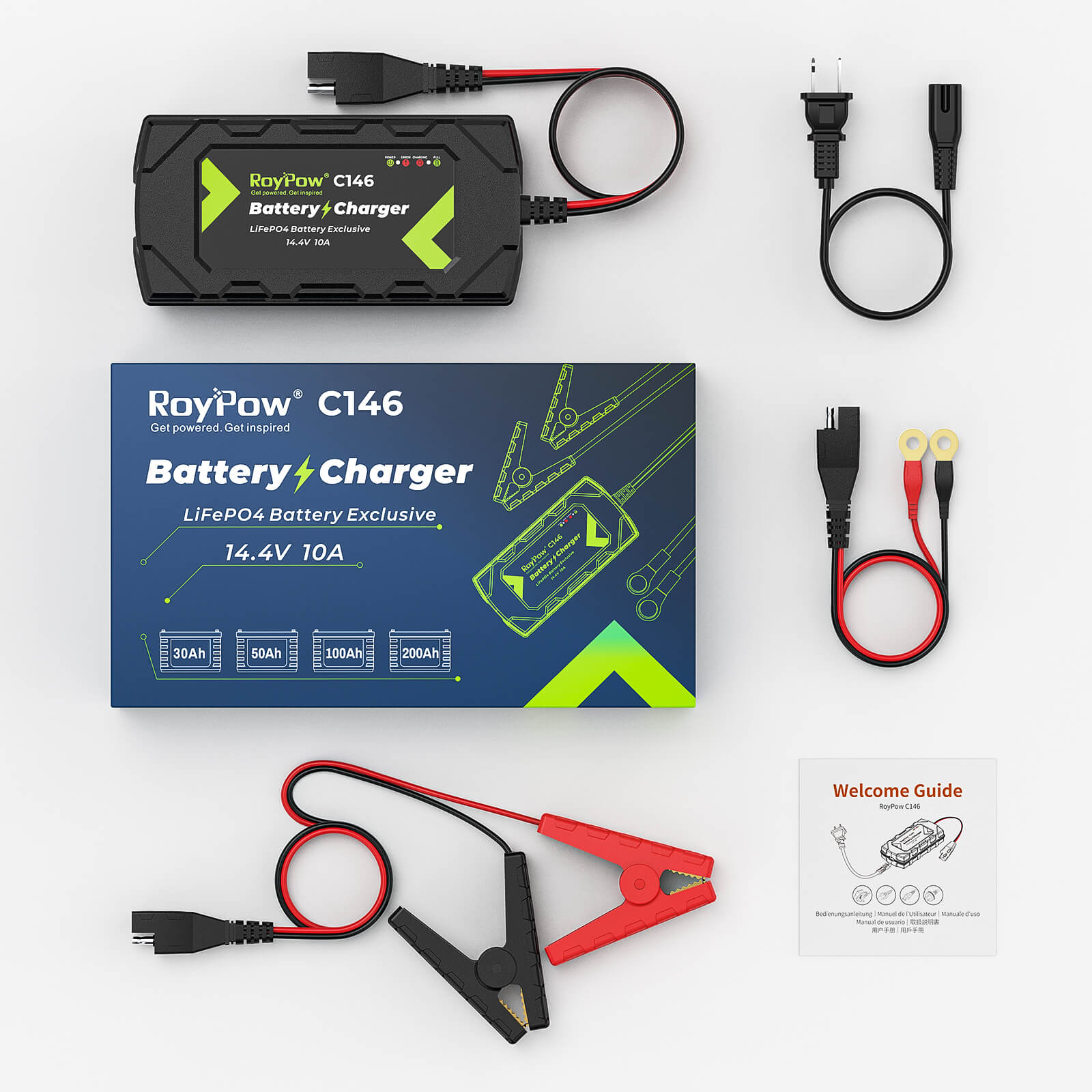

RoyPow 14.4V-10A C146 LiFePO4 Battery charger
Pre-sale: Estimated arrival time: 3 months
10-Years Warranty
20 Years of Design Life
16 Units Flexible Capacity Expansion
Easy Installation: Wall Mounted
Intelligent BMS: Multiple Safe Protections
High Compatibility: Compatible with Many Brands of Inverters
14.4V-10A C146 LiFePO4 Battery charger
| System Specification | |
| Model | RBmax5.1L-F |
| Electric Data |
|
| Nominal Energy (kWh) | 5.12 |
| Usable Energy (kWh) | 4.79 |
| Cell Type | LFP (LiFePO4) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage Range (V) | 44.8 ~ 56.8 |
| Max. Continuous Charge Current (A) | 100 |
| Max. Continuous Discharge Current (A) | 100 |
| General Data | |
| Weight (Kg / lbs.) | 48 Kg / 105.8 lbs. |
| Dimensions (W × D × H) (mm / inch) | 500 x 167 x 490 mm / 19.69 x 6.57 x 19.29 inch |
| Operating Temperature (°C) | 0 ~ 55℃ (32 ~ 131℉) (Charge), -20 ~ 55℃ (4 ~ 131℉) (Discharge） |
| Storage Temperature (°C) Delivery SOC State (20~40%) |
>1 Month: 0 ~ 35℃ (32 ~ 95℉); ≤1 Month: -20 ~ 45℃ (-4 ~ 113℉) |
| Relative Humidity | ≤ 95% |
| Max. Altitude (m) | 4000 m / 13,123 ft (＞2,000 m / ＞6,561.68 ft derating） |
| Protection Degree | IP 20 |
| Installation Location | Ground-Mounted; Wall-Mounted |
| Communication | CAN, RS485 |
| Certification | EM,CE,Transportation,UN38.3 |
| Warranty | |
| Warranty (Years) | 5 Years |
| System Specification | |
| PV (DC Input) | |
| Recommended Max. PV Input Power | 6000W |
| Max. Input Voltage (VOC) | 500V |
| MPPT Operating Voltage Range | 85V-450V (@75V Start up) |
| Number of MPPT | 1 |
| Max. Number of Input Strings per MPPT | 1 |
| Max. Input Current per MPPT | 27A |
| Max. Short-circuit Current per MPPT | 35A |
| Grid (AC Input) | |
| Max. Input Power | 11500W |
| Max. Input Current | 50A |
| Rated Grid Voltage | 220 / 230 / 240Vac |
| Rated Grid Frequency | 50 / 60Hz |
| Acceptable Range | 170-280Vac (For UPS); 90-280Vac (For Home Appliances) |
| Battery (Bi-direction) | |
| Battery Type | LiFePO4 / Lead-acid |
| Battery Voltage Range | 40-60Vdc |
| Rated Battery Voltage | 48Vdc |
| Max. Charge / Discharge Current | 120A / 130A |
| BMS Communication Mode | RS485 |
| Efficiency | |
| Peak Efficiency | 0.98 |
| Max. MPPT Efficiency | 0.999 |
| Backup Output (AC Output) | |
| Rated Output Power | 6000W / 6000VA |
| Rated Output Current | 27.3A |
| Rated Output Voltage / Frequency | 220 / 230 / 240Vac 50 / 60Hz |
| Parallel Capacity | Max. 12 Units |
| Surge Power | 12000VA 5s |
| THDv (@ Linear Load) | ＜3% |
| Switch Time | 10ms Typical (For UPS), 20ms Typical (For Home Appliances) |
| Protection | |
| Inner Protection | Output Short-circuit Protection, Output Overvoltage Protection |
| Surge Protection | PV: Type III, AC: Type III |
| IP Rating | IP54 |
| General Specifications | |
| Operating Temperature Range | -10℃~55℃ |
| Relative Humidity Range | 5%~95% |
| Max. Operating Altitude | ＞2000m Derating |
| Standby Self-consumption | ＜10W |
| Installation Type | Wall-mounted |
| Cooling Mode | Fan Cooling |
| Communication | RS232/RS485/Dry Contact/Wi-Fi |
| Display | LCD |
| Mechnical Specifications | |
| Inverter Dimension (L x W x H) | 346.6 x 120 x 444.7 mm |
| Shipping Dimension | 560 x 465 x 240mm |
| Net Weight | 12.4kg |
| Gross Weight | 14.6kg |
| Warranty Period | 3 Years |
In general, the order will be shipped within 24 hours after the payment is successful. If there is another condition, we will notify the customer by email.
USA Shipment from the CA or GA warehouse. The order won't be shipped on Saturday and Sunday, and orders placed on Saturday and Sunday will be shipped on next Monday.
Shipping fee
FREE shipping on all orders. All our shipping for products will be a door-to-door service with local UPS or FedEx delivery company.
Destinations
If you are concerned with shipping, please also check the free shipping area above picture. For some certain places, we might not deliver or need extra shipping.
Roypow offers free shipping within the continental U.S. For USA shipment we do not ship to Hawaii, Alaska, Puerto Rico, Overseas Islands.
Orders with multiple items may be shipped in separate packages to speed up delivery.
Tips for shipping
-
Roypow is doing its best to make the promised time, please understand our warehouse is working only on business days, so please remember to enjoy the day even if there's a difference in the ETA. By the way, we will inform you proactively if something is wrong.
-
You may please fill in the phone number. For a multi-hundred USD Battery, deserve a phone number for some urgent calls?
-
Feel free to reach out to us at service@roypowcell.com.
