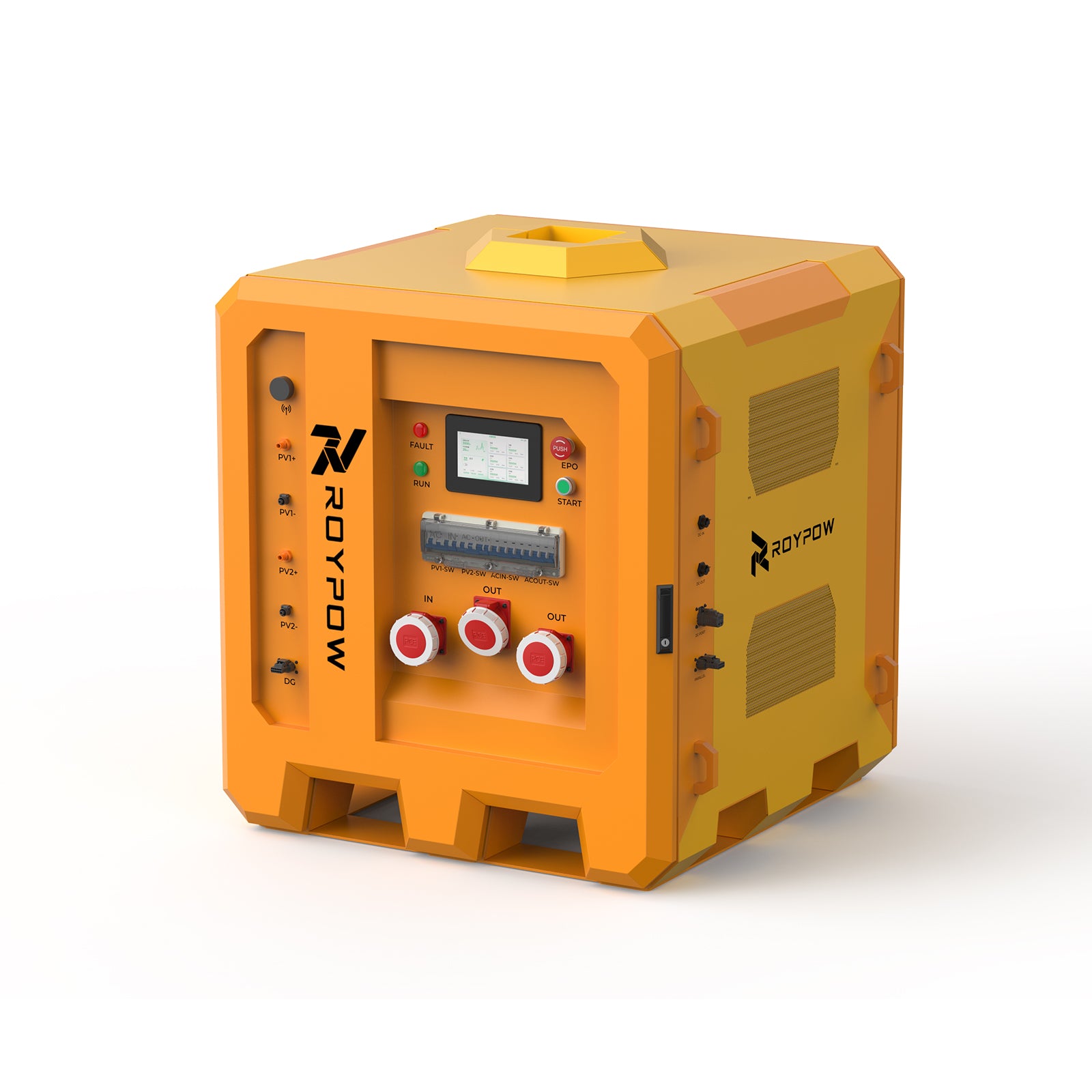

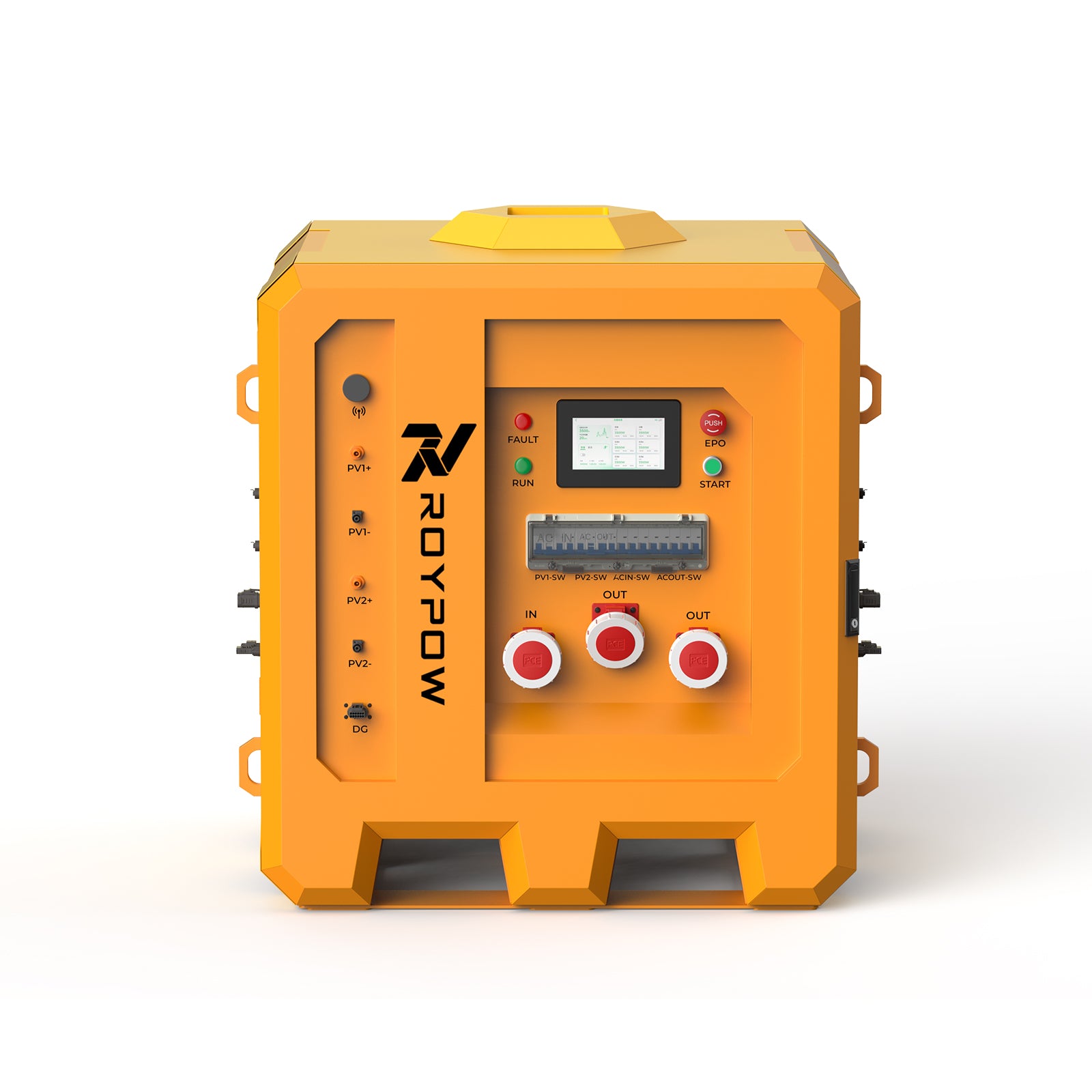

RoyPow LiFepo4 Battery Mobile Hybrid ESS Solution EU Standards
Get a bulk price for bulk items.
Pre-sale: Estimated arrival time: 2 months
- R&D specially developed for high-frequency mobile scenarios, with flexibility and mobility.
- Suitable for working with various conventional generators, inverters work normally under various working conditions of generator.
- Support remote maintenance and remote OTA upgrade, error code transmission to assist in problem diagnosis.
- Built-in 4G module enables real-time cloud-based monitoring of battery data, physical location tracking
- Photovoltaic panel input; generator connection with automatic charging; three-phase mains charging.

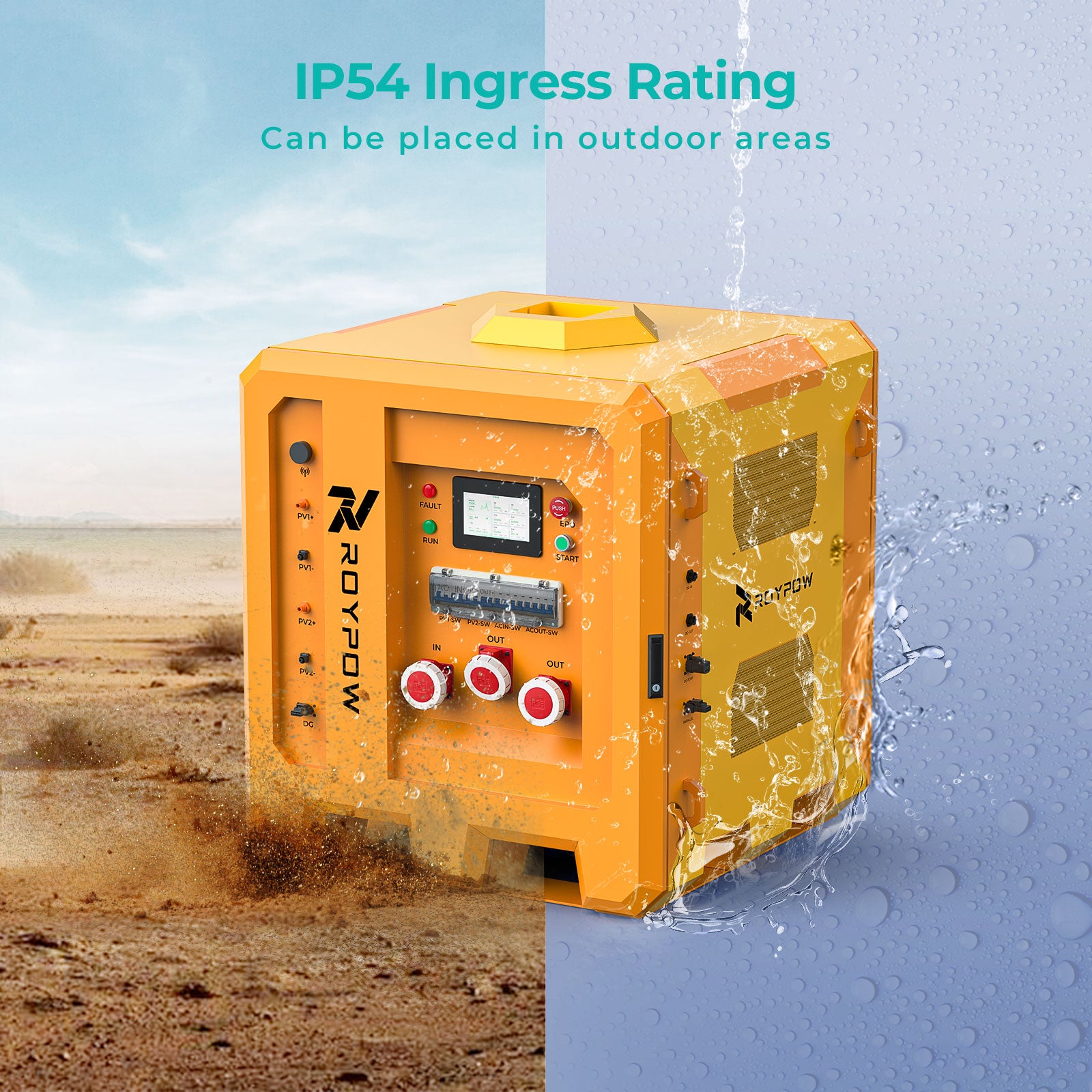

- IP54-rated enclosure, shock-resistant construction with vibration-damped internals, enabling deployment in demanding environments (-20°C to +50°C operational range).
For small-scale C&I energy applications, ROYPOW's mobile hybrid ESS is the ideal choice, offering a compact, flexible, and cost-effective energy storage solution to meet the demands of power backup, peak shaving, and seamless integration with renewable energy sources. Businesses can optimize energy usage, lower costs, enhance sustainability, etc.
ROYPOW Mobile Hybrid ESS Solution Advantages
Advantage 1: All-In-One-Designed.R&D specifically for the use of high-frequency mobile scenarios
Advantage 2: High Reliable Performance.Higher system compatibility, more efficient and stable communication
Advantage 3: Strong Adaptability.Suitable for working with various conventional generators, inverter work normally under various working conditions of generators
Advantage 4: Intelligent Management.Support remote maintenance and remote OTA upgrade
Generator connection with automatic charging
Plug and play, Strong flexibility
Max. 6 in Parallel
Up to 6 units can be connected in parallel, with a maximum output of 198 kWh.
Application Scenarios & Case
Suitable for Farm Irrigation, Construction, Outdoor Party, Emergency Power Backup, Ranch Water Pump, and Mining.
| Specifications | |
| Model | PC15KT-E/A |
| AC Output (Discharging) | |
| Rated Power | 15 kW (90 kW / 6 in Parallel) |
| Rated Voltage / Frequency | 380 V / 400 V 50 / 60 Hz |
| Rated Current | 3 x 21.8 A |
| Single-Phase | 220V / 230V AC |
| Rate power 5KW; Max. 7.5KW @ 1 hour | |
| Apparent Power | 225 kVA |
| AC Connection | 3W+N |
| Overload Capacity | 120% @10min / 200% @10S |
| AC Input (Charging) | |
| Rated Power | 15 kW |
| Rated Voltage / Current | 380 V / 400 V 22.5 A |
| Single Phase / Current | 220 V / 230 V 22 A (Optional), Single phase to three phases converter (optional accessory) |
| THDI | ≤3% |
| AC Connection | 3W+ N |
| Battery | |
| Battery Chemistry | LiFePO4 |
| DoD | 90% |
| Rated Capacity | 33 kWh (Max. 198 kWh / 6 in Parallel) |
| Voltage | 550 ~ 950 VDC |
| DC Input (PV) | |
| Max. Power | 30 kW |
|
Number of MPPT /Number of MPPT Input |
2-2 |
| Max. Input Current | 30 A / 30 A |
| MPPT Voltage Range | 160 ~ 950 V |
| Number of String per MPPT | 2 / 2 |
| Physical | |
| Ingress Rating | IP54 |
| Relative Humidity | 0 ~ 100% Non-condensing |
| Fire Suppression System | Hot Aerosol (Cell & Cabinet) |
| Max. Efficiency | 98% (PV to AC); 94.5% (BAT to AC) |
| Topology Operating Ambient | Transformerless |
| Temperature | -20 ~ 50℃ (-4 ~ 122℉) |
| Noise Emission (dB) | ≤ 70 |
| Altitude (m) | 4000 (>2000 Derating) |
| Weight (kg) | 670KG |
| Dimensions (LxWxH) | 1100 x 1100 x 1000 mm |
| Standard Compliance | Battery: CB (IEC 62619), UN38.3 |
| System: CE-EMC (EN 61000-6-2/4 ), CE-LVD (EN 62477-1, EN 62109-1/2) | |
In general, the order will be shipped within 24 hours after the payment is successful. If there is another condition, we will notify the customer by email.
USA Shipment from the CA or GA warehouse. The order won't be shipped on Saturday and Sunday, and orders placed on Saturday and Sunday will be shipped on next Monday.
Shipping fee
FREE shipping on all orders. All our shipping for products will be a door-to-door service with local UPS or FedEx delivery company.
Destinations
If you are concerned with shipping, please also check the free shipping area above picture. For some certain places, we might not deliver or need extra shipping.
Roypow offers free shipping within the continental U.S. For USA shipment we do not ship to Hawaii, Alaska, Puerto Rico, Overseas Islands.
Orders with multiple items may be shipped in separate packages to speed up delivery.
Tips for shipping
-
Roypow is doing its best to make the promised time, please understand our warehouse is working only on business days, so please remember to enjoy the day even if there's a difference in the ETA. By the way, we will inform you proactively if something is wrong.
-
You may please fill in the phone number. For a multi-hundred USD Battery, deserve a phone number for some urgent calls?
-
Feel free to reach out to us at service@roypowcell.com.
Click RoyPow Mobile Hybrid ESS Solution to get PDF
FAQ
The Power Unit is a mobile hybrid battery energy storage system with a nominal 15kW AC output.
It is suitable for mobile applications that are weak or have no local power grid, such as events and construction sites, telecom, rental applications, etc.

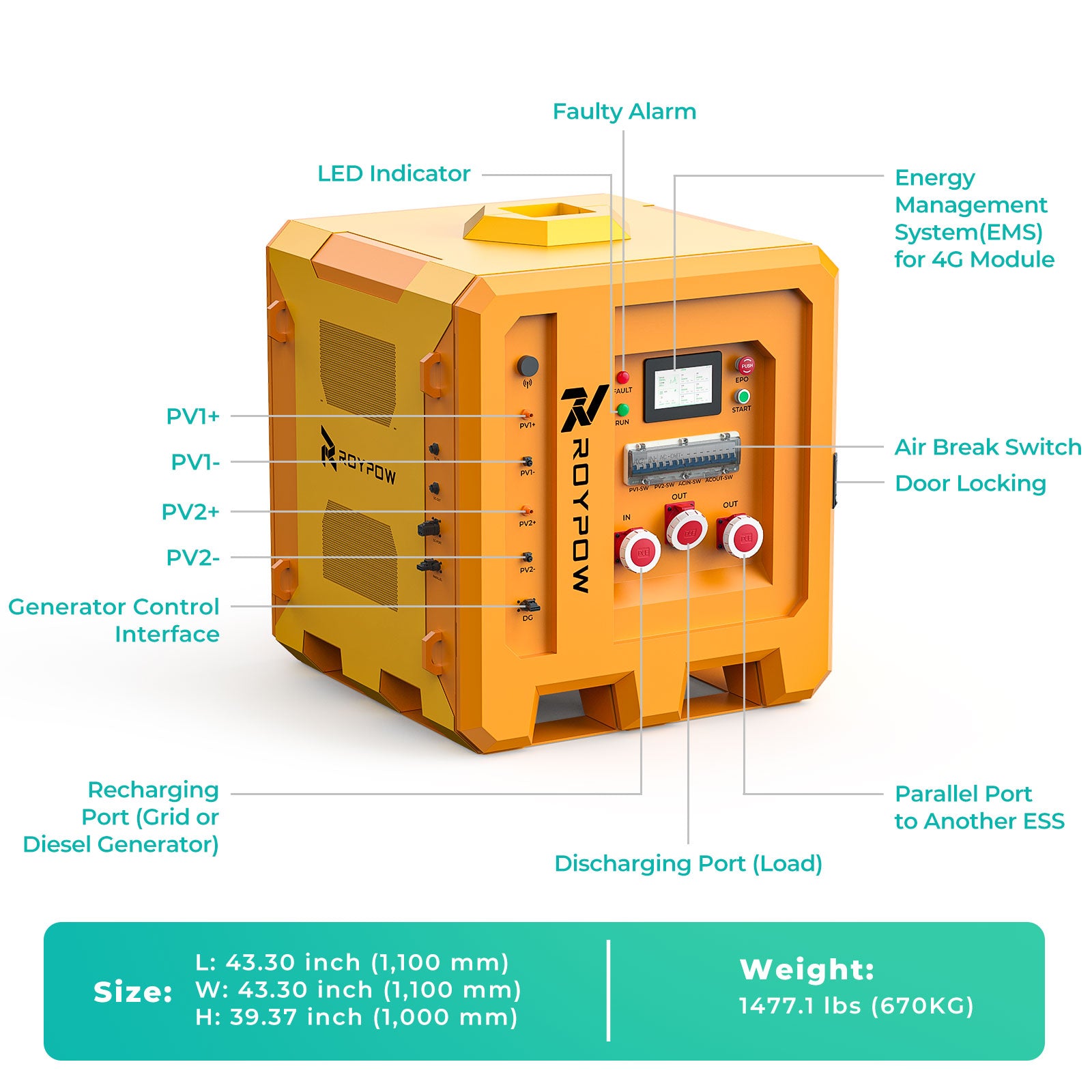

a.Size dimension: 1100mm*1100mm*1100mm
b. Weight: 670kg
c. Specicication:
PV input: 2 MPPTs, max. power can reach 30kW, MPPT voltage range is 680 ~ 950V
Backup side output: 15kW rated power, 18kW@10min, 30kW@10s
max. 7.5kW @ 1 hour (for single-phase output)

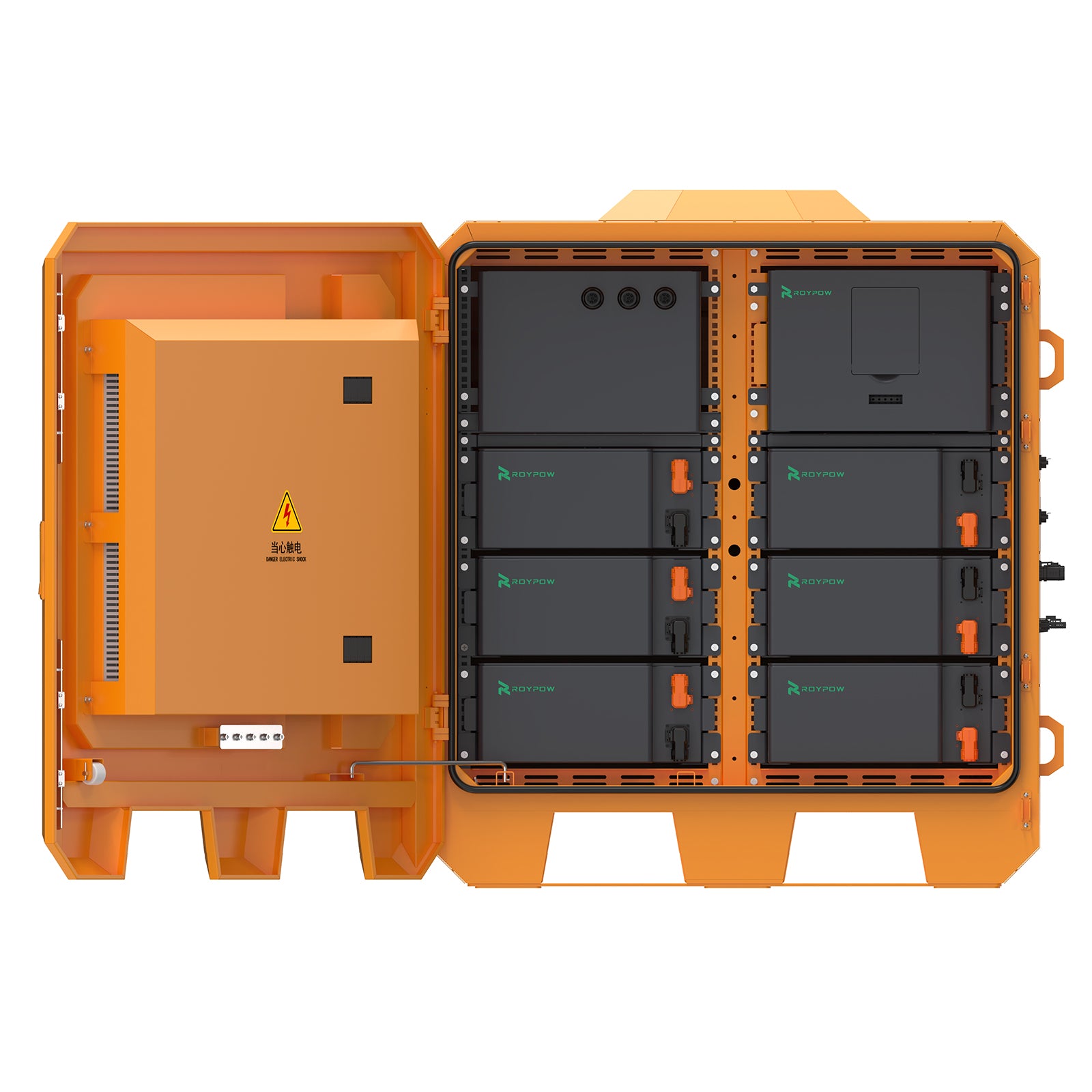

1 battery cluster: 460.8V 72Ah, 30kWh/cluster, boosted by 1 unit 15kW optimizer System
working voltage is: 550-950V
It can work outdoors, and IP54-rated water and dust protection.
Yes, battery charging below 0°C requires heating.
Yes. It has 4G, Bluetooth modules, and remote firmware upgrade.
Yes. According to the load power, the dynamic adjustment of charging power
can make the diesel engine work near the maximum efficiency point, so as to save fuel.
Yes, but an auxiliary device needs to be selected.
It can be combined with a diesel generator to power the load.
It support charging from grid power, solar panels, and diesel generators. It support 6 units in parallel.
