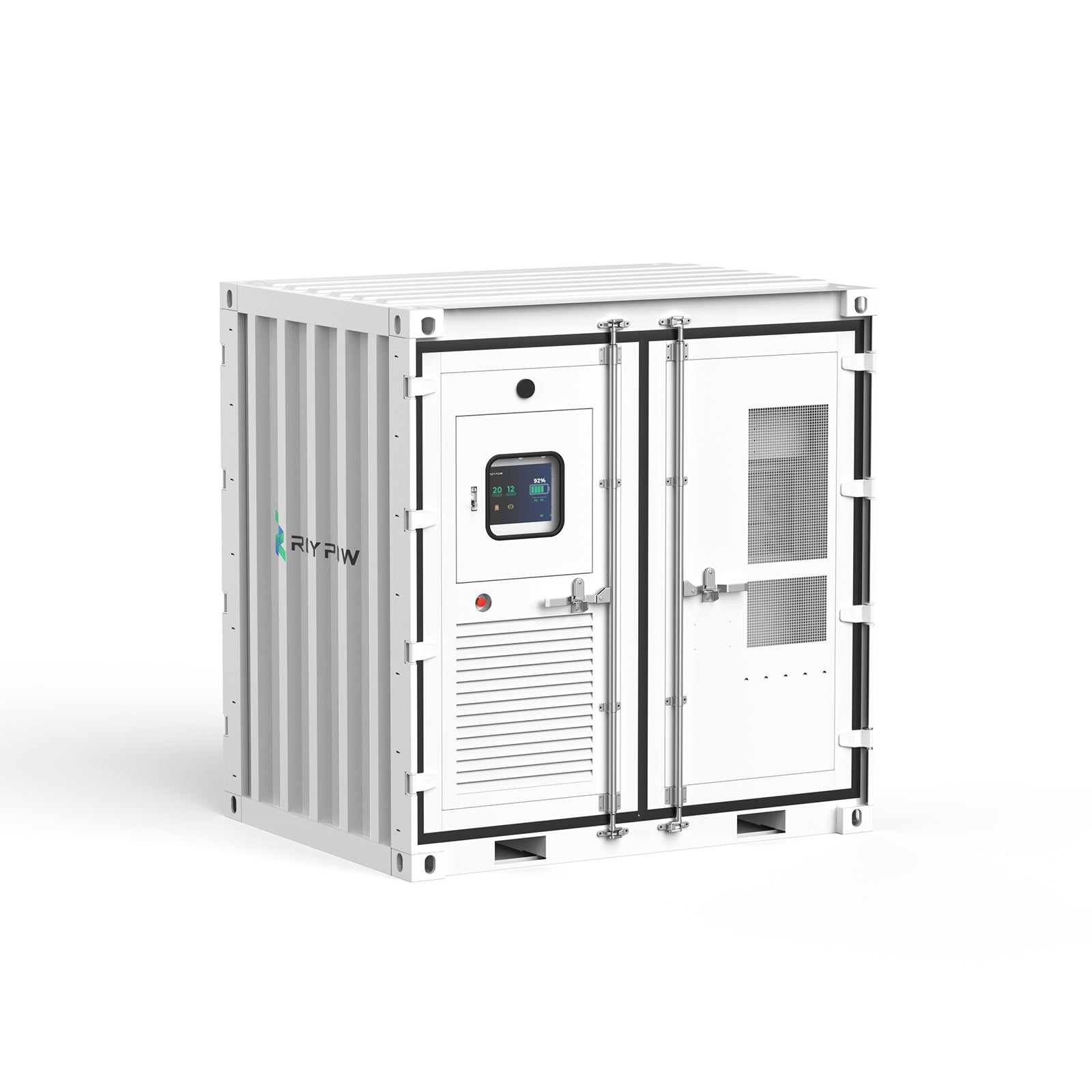

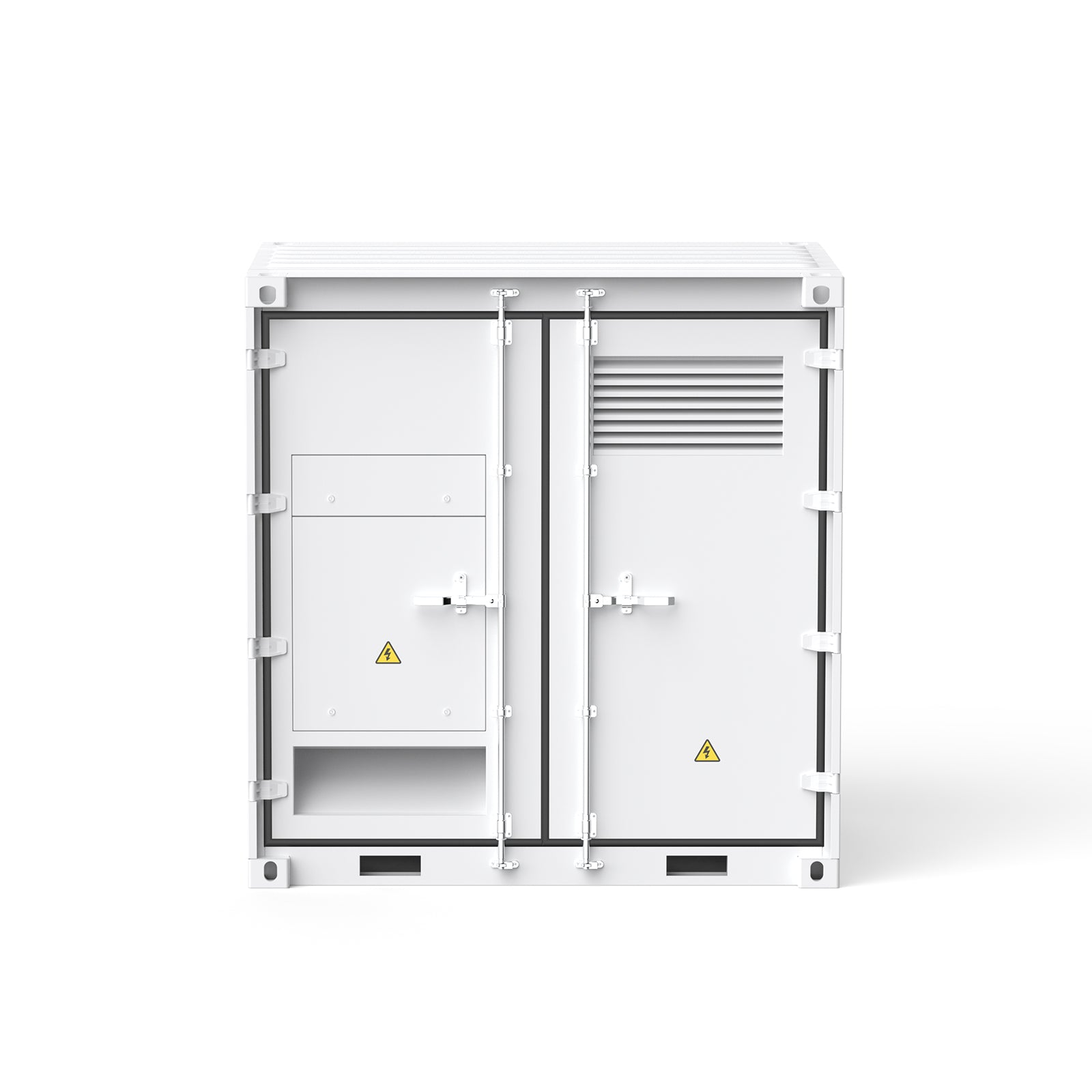

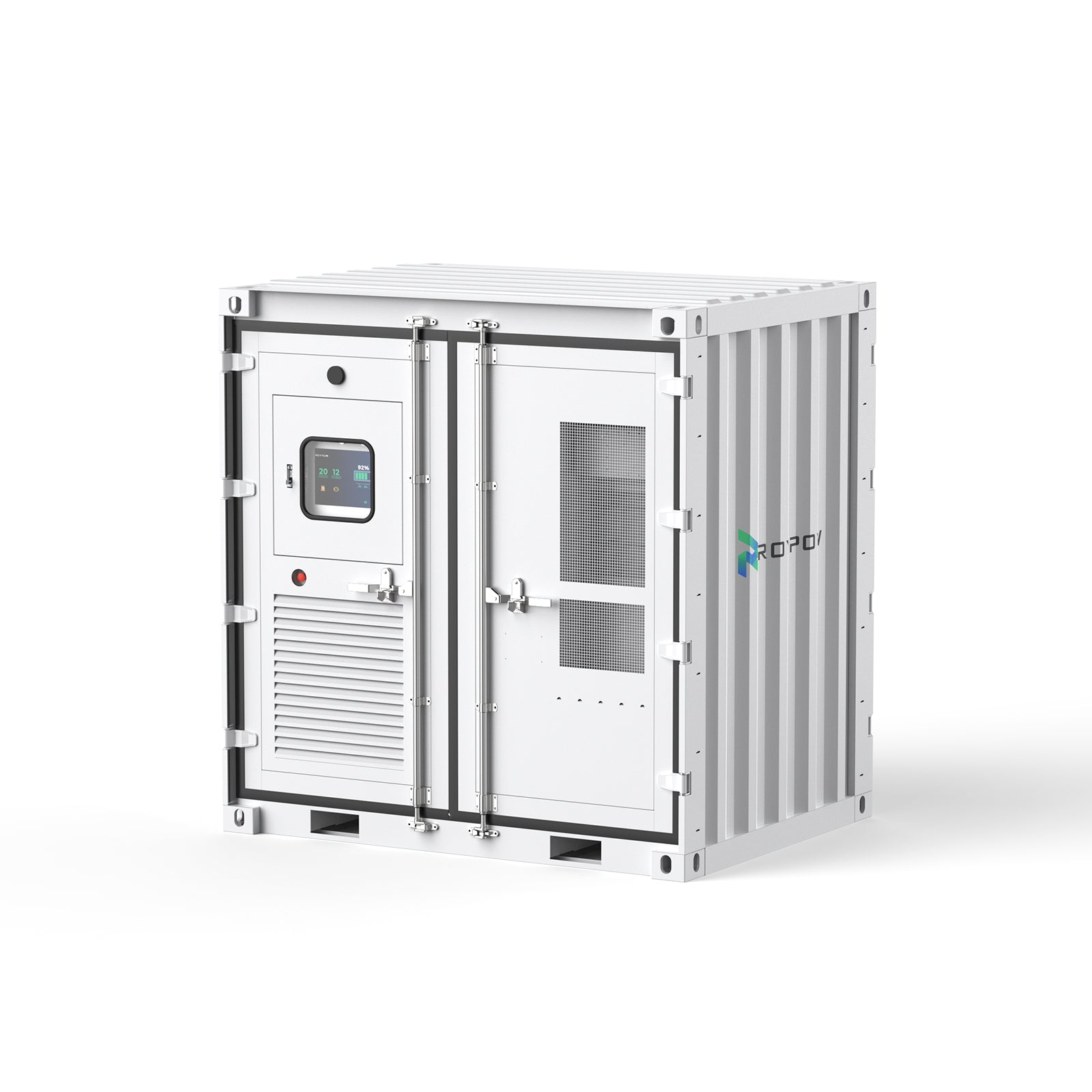

Roypow X250KT DG + ESS Solution EU Standards for Temporary electricity usage,Construction
Get a bulk price for bulk items.
Pre-sale: Estimated arrival time: 2 months
- 30% Savings on Diesel Fuel Consumption.
- Two Working Modes: Hybrid Mode (X250KT + DG) and Off-Grid Mode.
- AC-Coupling. X250KT can connect with PV, Grid or Diesel Generator.

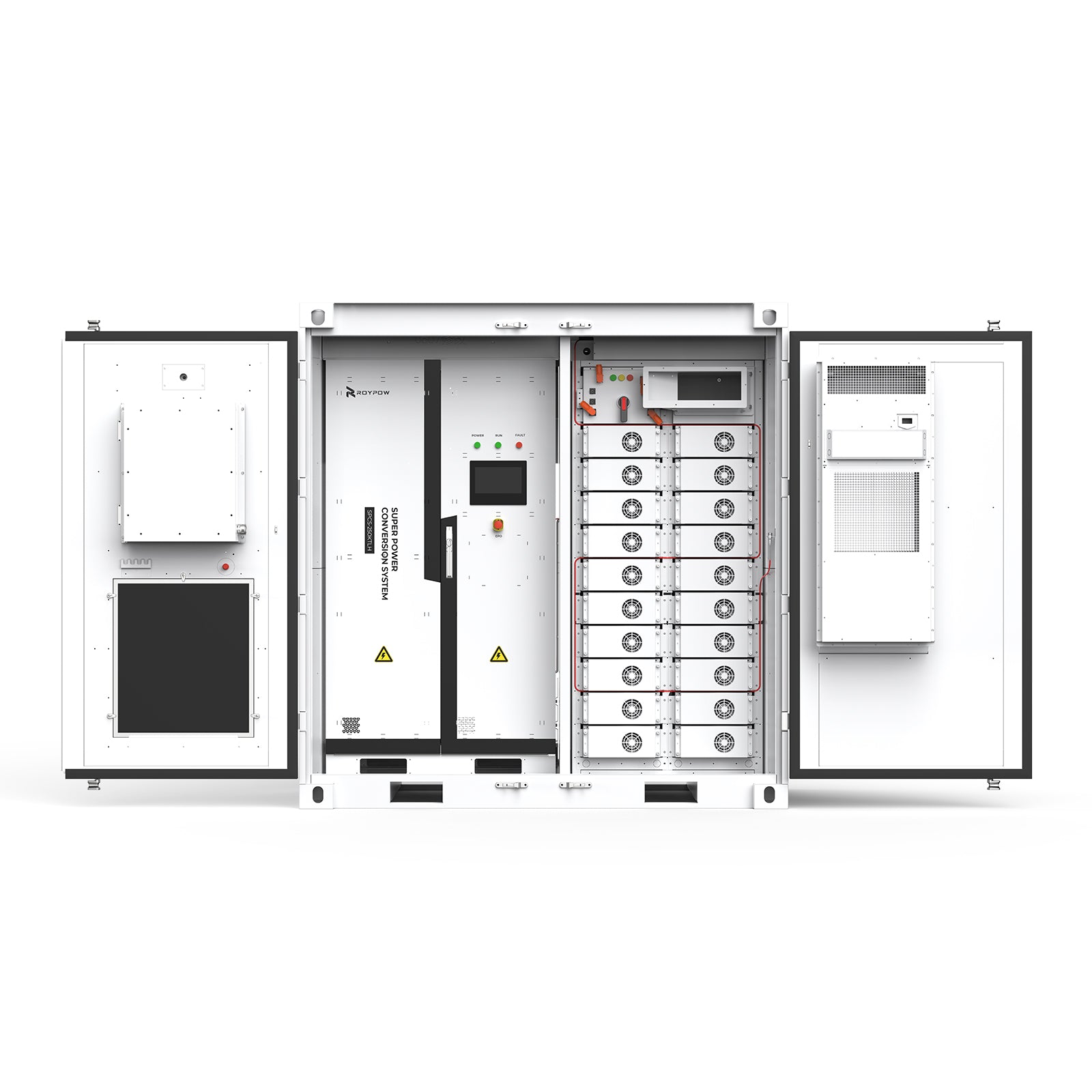

- All-In-One Modular Design.Integrates the powerful and efficient battery, SPCS, and SEMS into one unit.
- Plug & Play. Ensures easy installation, convenient maintenance.
- Rapid Deployment. Supports frequent lifting and forklift transportation for rapid deployment.
- Adapt to Various Environments. Highly waterproof and dust-proof.
- Integrated Alert & Warning System. Equipped with a comprehensive safety package, including a fire extinguishing system.
- Up to 4 Sets Parallel. the energy capacity reaching 1 MW/ 614.4 kWh, for high loads.
- Application Scenarios: Temporary electricity usage, Emergency power supply, Micro-grid power supply.
| Technical Specifications | ||
| Model | X250KT-U/A | X250KT-E/A |
| AC Output Data (Off-grid Mode) | ||
| Rated Power | 150 kW | 150 kW |
| Max. Rated / Apparent Power | 250 kW / 280 kVA[1] | 250 kW / 280 kVA[1] |
| Rated Voltage | 400 V (±15%) | 480 V (±15%) |
| Rated Current | 220 A | 183 A |
| Grid Frequency | 50 Hz | 60 Hz |
| AC Connection | 3 W + N | 3 W + N |
| THDI | ≤ 3% | ≤ 3% |
| Power Factor | -1 ~ +1 | -1 ~ +1 |
| AC Output Data (Off-grid Mode) | ||
| Rated Power | 250 kW | 250 kW |
| Max. Rated / Apparent Power | 250 kW / 250 kVA [1] | 250 kW / 250 kVA [1] |
| Rated Voltage / Frequency | 400 V / 50 Hz | 480 V / 60 Hz |
| THDV (Linear Load) | ≤3% | ≤3% |
| Battery Data | ||
| Battery Chemistry | LiFePO4 | LiFePO4 |
| Nominal Energy | 153.6 kWh | 153.6 kWh |
| Working Voltage Range | 600 V ~ 876 V | 600V ~ 876V |
| Nominal Charging Current | 100 A | 100 A |
| Nominal Discharging Current | 200 A | 200 A |
| Max. Discharging Current | 300 A | 300 A |
| DOD | 90% | 90% |
| Compatible Diesel Generator | ||
| Rated Power | ≤400 kVA | ≤400 kVA |
| Rated Voltage | 400 V | 480 V |
| Rated Frequency | 50 Hz | 60Hz |
| General | ||
| Parallel Capable | Yes ( Up to 4) | Yes ( Up to 4) |
| EMS | SEMS3000 12 inch LCD Touch Panel | SEMS3000 12 inch LCD Touch Panel |
| Ingress Rating | IP54 | NEMA 3R |
| Topology | Transformer | Transformer |
| Working Temperature | -4 ~ 122℉ (-20 ~ 50℃) | -4 ~ 131℉ (-20 ~ 55℃) |
| Storage Temperature | -40 ~ 149℉ (-40 ~ 65℃) | -40 ~ 149℉ (-40 ~ 65℃) |
| Relative Humidity | 5 ~ 95% (No condensing) | 5 ~ 95% (No condensing) |
| System Noise | <65dB | <65dB |
| Cooling | Air cooling (Inverter room) | Intelligent temperature control (Battery room |
| Fire Suppression System | Included | Included |
| Altitude | 5,000 (>3,000 derating) | 5,000 (>3,000 derating) |
| Dimensions, LxWxH | 90.55 x 68.90 x 94.49 inch (2,300 x 1,750 x 2,400 mm) | 90.55 x 68.90 x 94.49 inch (2,300 x 1,750 x 2,400 mm) |
| Weight | 10,361.72 lbs (4,700 kg) | 10,361.72 lbs (4,700 kg) |
