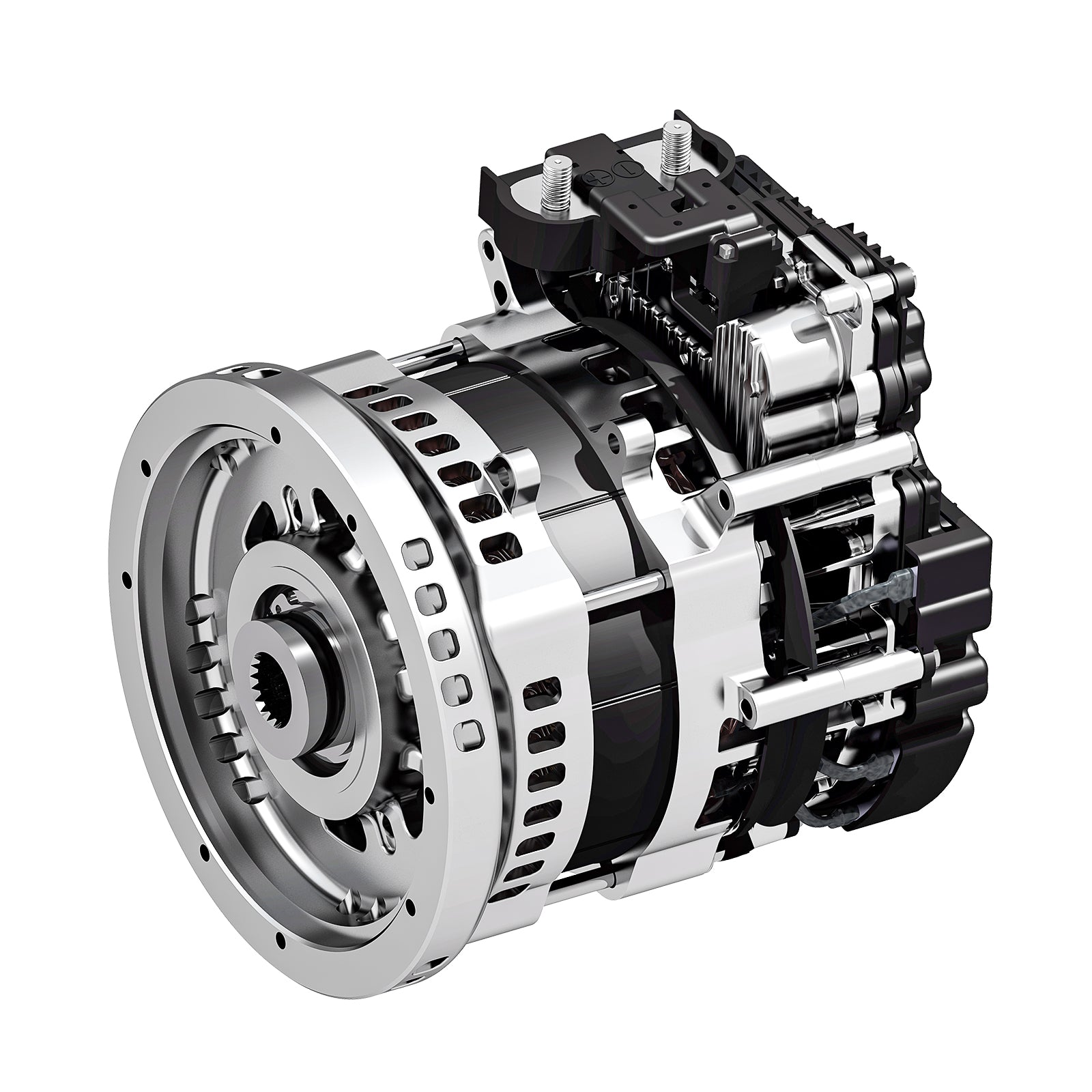

Roypow Golf Cart Motor and Controller Kit, Compact 2-in-1 Drive Motor & Controller for EZGO Golf Cart
PRE-ORDER: The latest batteries will reach the warehouse within 45 business days. Now available for pre-order.
- 2-in-1 Motor & Controller: Compact, lightweight, powerful acceleration.
- Ultra High-Speed (16,000 rpm): Enables higher top speed or improved launch/gradability via gear ratios.
- High Output (15 kW / 60 Nm): Advanced motor and power module design for better electrical/thermal performance.
- Excellent Drivability: Features like Active Anti-Jerk control enhance the driving experience.
- User Preferences Mode: Adjustable speed limit, acceleration rate, and regenerative braking intensity.

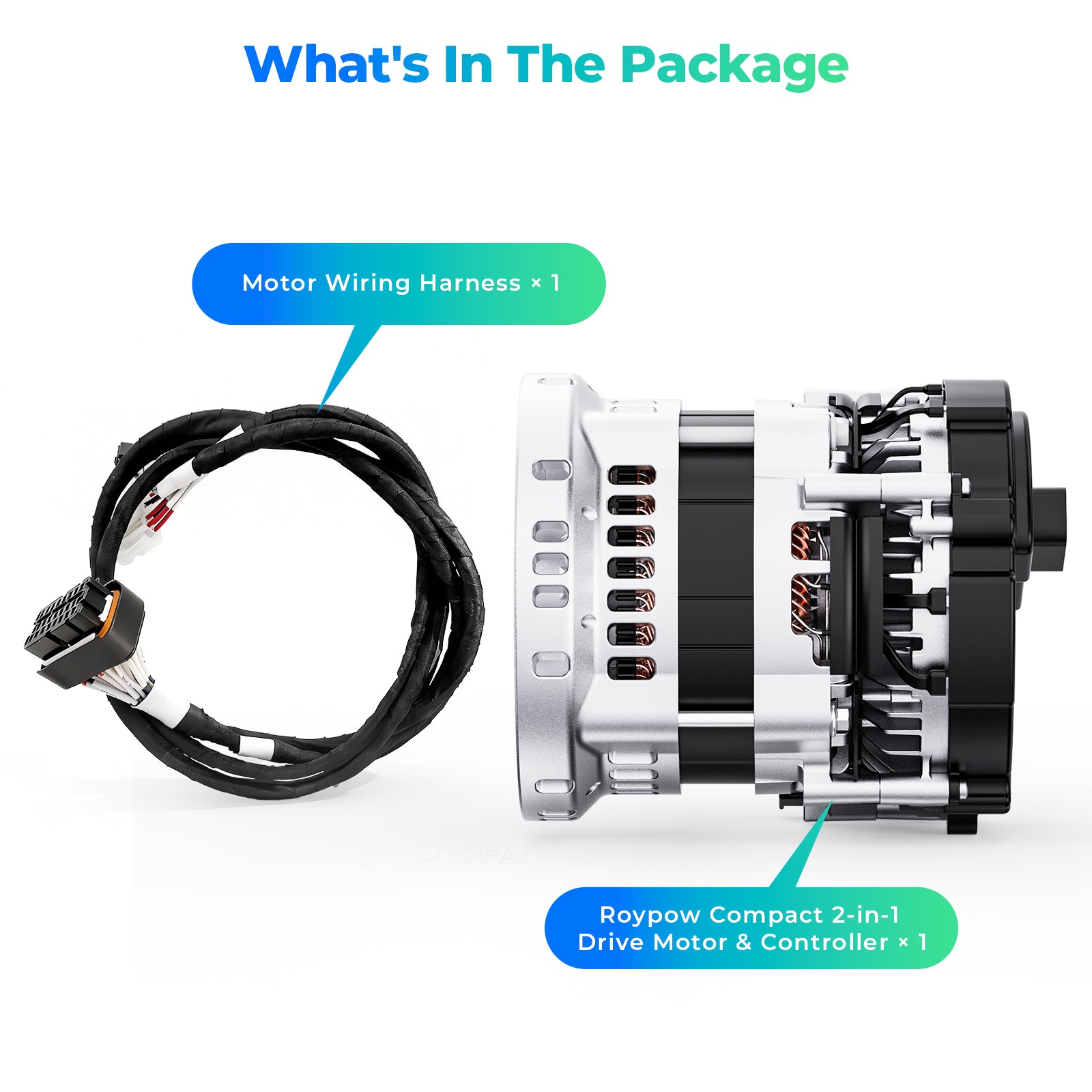

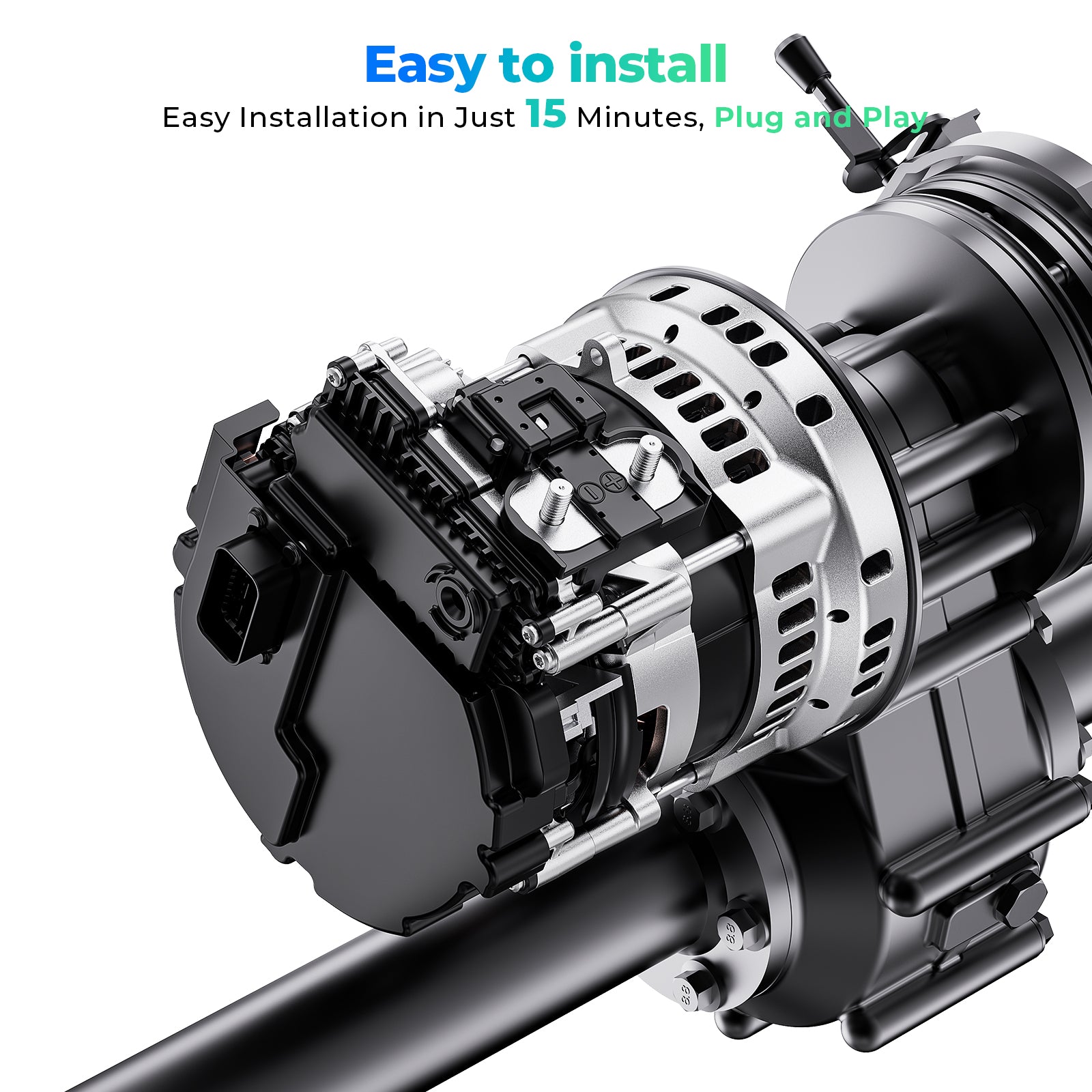

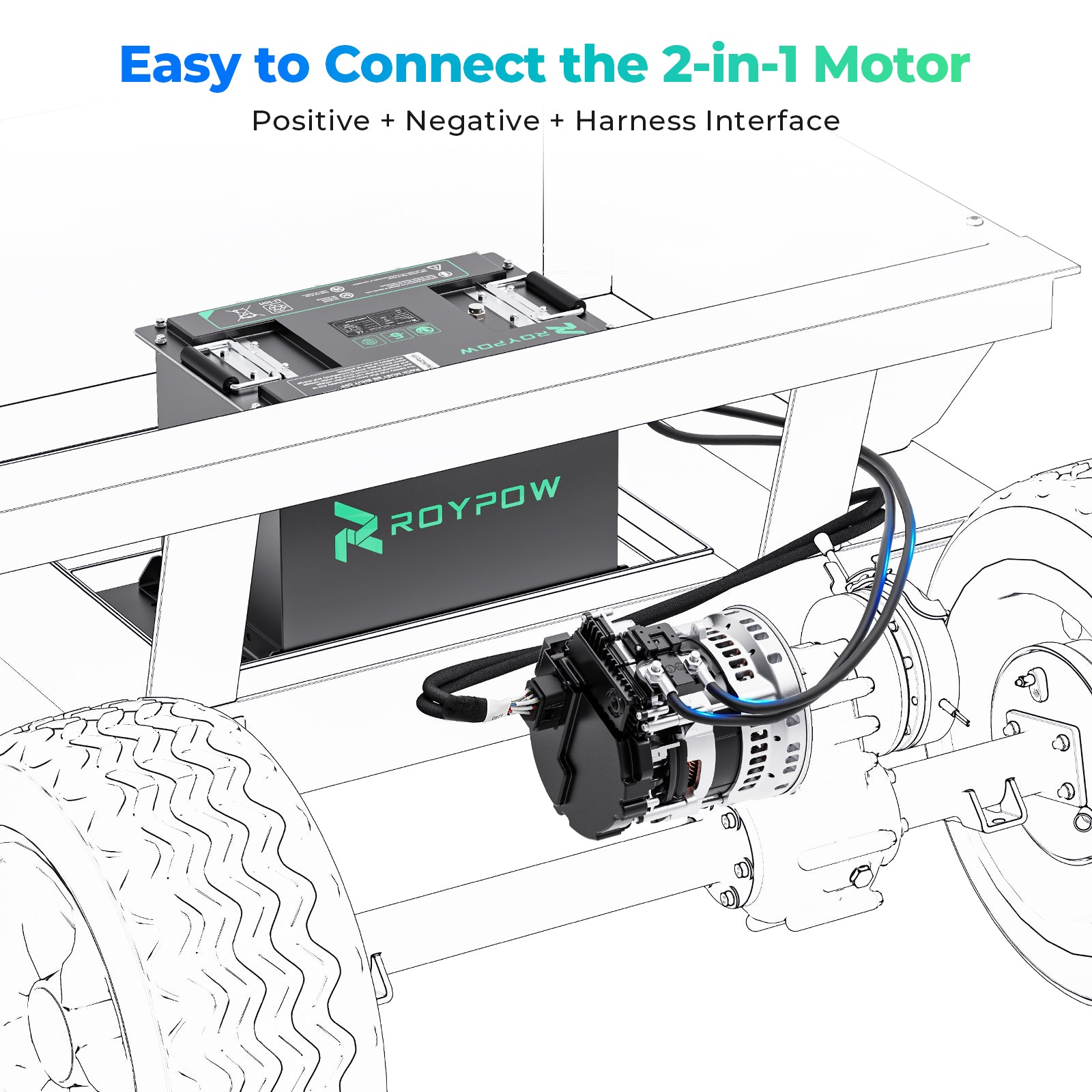

- Customized Interfaces: Plug-and-play harness; compatible with RVC, CAN2.0B, J1939, etc.
- CANBUS Battery Protection: Manages battery signals to ensure safety and extend lifespan。
- Comprehensive Diagnosis & Protection: Monitors/protects voltage, current, and temperature; includes load dump protection.
- All Automotive Grade: Meets strict design, testing, and manufacturing standards for high quality.
Quantity:





| Specification | |
| Parameters | BLM4815D |
| Operation Voltage | 24-60V |
| Rated Voltage | 51.2V for 16s LFP, 44.8V for 14s LFP |
| OperatingTemperature | -40°C ~ 55°C |
| Maximum AC Qutput | 250 Arms |
| Peak Motor Torque | 60 Nm |
| Motor Power@48V, Peak | 15 KW |
| Motor Power@48V, >20 s | 10 KW |
| Continuous Motor Power | 7.5 KW @ 25°C, 6000RPM, 6.2 KW @ 55°C, 6000RPM |
| Maximum Speed | 14000 RPM Continuous, 16000 RPM Intermittent |
| Overal Efficiency | Max. 85% |
| Motor Type | HESM |
| Position Sensor | TMR |
| CAN Communication Protocol | Customer Specific, eg. CAN2.0B 500kbps or J1939 500kbps; |
| Operation Mode | Torque Control / Speed control / Regenerative mode |
| Temperature Protection | Yes |
| Voltage Protection | Yes with Load Dump Protection |
| Weight | 10 KG |
| Diameter | 188 L x 150 D mm |
| Cooling | Passive Cooling |
| Transmission Interface | Customer Specific |
| Case Construction | Cast Aluminum Alloy |
| Connector | AMPSEAL Automotive 23way Connecter |
| Isolation Level | H |
| IP Level | Motor: lP25, Inverter IP69K |
